Specifications
- AIMS SKU A0121853
- Brand Seco
- Model Number 02505793
- Barcode Number 5793025001002
- Designation 218.19-125T-T3-MD10,T350M
- Clearance Angle Major (an) Deg 12.0 deg
- Insert Thickness (S) mm 3.97
- Grade Type Carbide CVD
- Curved Cutting Edge Radius (CCER) mm 12.5
- Inscribed Circle Diameter (IC) mm 8.9
- Insert Hand (IH) Both
- Corner Radius (RE) mm 0.8
- Cutting Edge Count (CEDC) 3
- Type Milling Insert
- Insert Seat Size Code (SSC) 218.19-125
- Grade T350M
SKU: A0121853

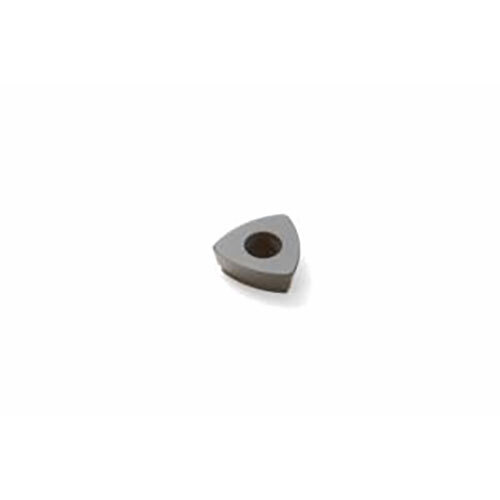

Seco High Feed Milling Single Sided Insert 12.5 x 0.8 x 3.97mm T350M Grade (MD10 Geometry) 218.19-125T-T3-MD10,T350M Pack of 10
High Feed Milling Insert T350M Grade (MD10 Geometry)
$340.34
