Specifications
- AIMS SKU A0121855
- Brand Seco
- Model Number 74079708
- Barcode Number 79708740001003
- Designation 218.19-080T-M04,F30M
- Clearance Angle Major (an) Deg 12.0 deg
- Insert Thickness (S) mm 2.38
- Grade Type Carbide PVD
- Curved Cutting Edge Radius (CCER) mm 8
- Inscribed Circle Diameter (IC) mm 5.5
- Insert Hand (IH) Both
- Corner Radius (RE) mm 0.4
- Cutting Edge Count (CEDC) 3
- Type Milling Insert
- Insert Seat Size Code (SSC) 218.19-080
- Grade F30M
SKU: A0121855

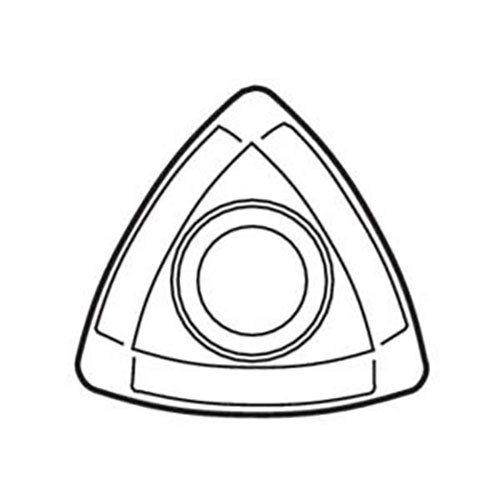

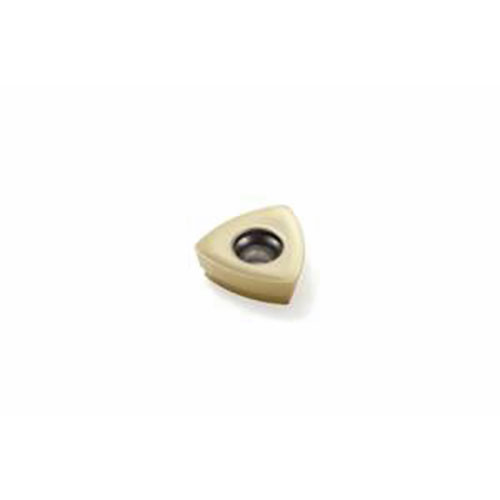

Seco High Feed Milling Single Sided Insert 8 x 0.4 x 2.38mm F30M Grade (M04 Geometry) 218.19-080T-M04,F30M Pack of 10
High Feed Milling Insert F30M Grade (M04 Geometry)
$259.30
