Description

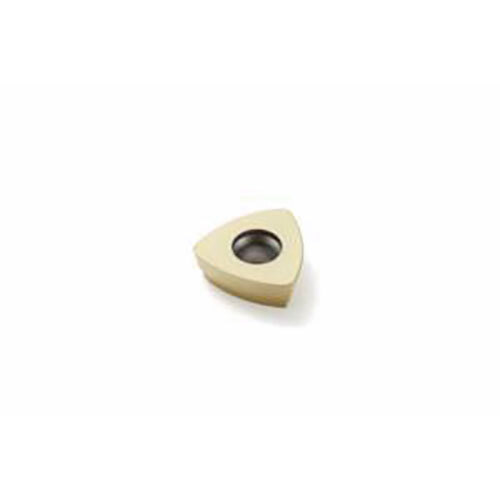

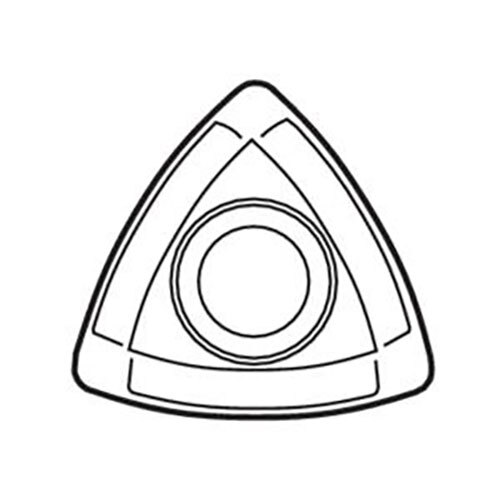

High Feed Milling Insert F25M Grade (MD08 Geometry)

  • F25M grade.
  • MD08 geometry.
  • 3 cutting edge, single-sided insert.
  • 218.19-100 Insert Seat Size Code (SSC).

About F25M Grade

  • PVD coated grade.
  • The tough grade for rough milling in tool steel.
  • (Ti, Al) N – TiN.

Specifications

  • AIMS SKU A0121834
  • Brand Seco
  • Model Number 218.19-100T-MD08,F25M
  • Barcode Number 35656024001002
  • Designation 218.19-100T-MD08,F25M
  • Grade Type Carbide PVD
  • Curved Cutting Edge Radius (CCER) mm 10
  • Inscribed Circle Diameter (IC) mm 7.06
  • Insert Hand (IH) Both
  • Corner Radius (RE) mm 0.8
  • Cutting Edge Count (CEDC) 3
  • Clearance Angle Major (an) Deg 12.0 deg
  • Insert Thickness (S) mm 2.78
  • Type Milling Insert
  • Insert Seat Size Code (SSC) 218.19-100
  • Grade F25M
SKU: A0121834

Seco High Feed Milling Single Sided Insert 10 x 0.8 x 2.78mm F25M Grade (MD08 Geometry) 218.19-100T-MD08,F25M Pack of 10

High Feed Milling Insert F25M Grade (MD08 Geometry)

$245.96
