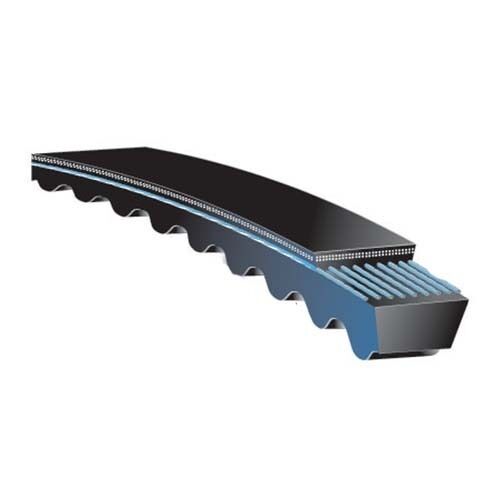

Gates Tri-Power Belt Classical Section - Heavy Duty V Belt

• Gates Tri-Power V Belt is built for superior performance on heavy duty drives of classical cross-section.
• The raw edge construction and special notch design makes the Tri-Power belt especially suited for drives requiring small diameter pulleys and back idlers.
• The ethylene EPDM compound allows the belt to handle extreme temperatures up to +121°C.

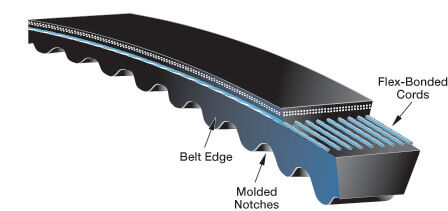

Construction

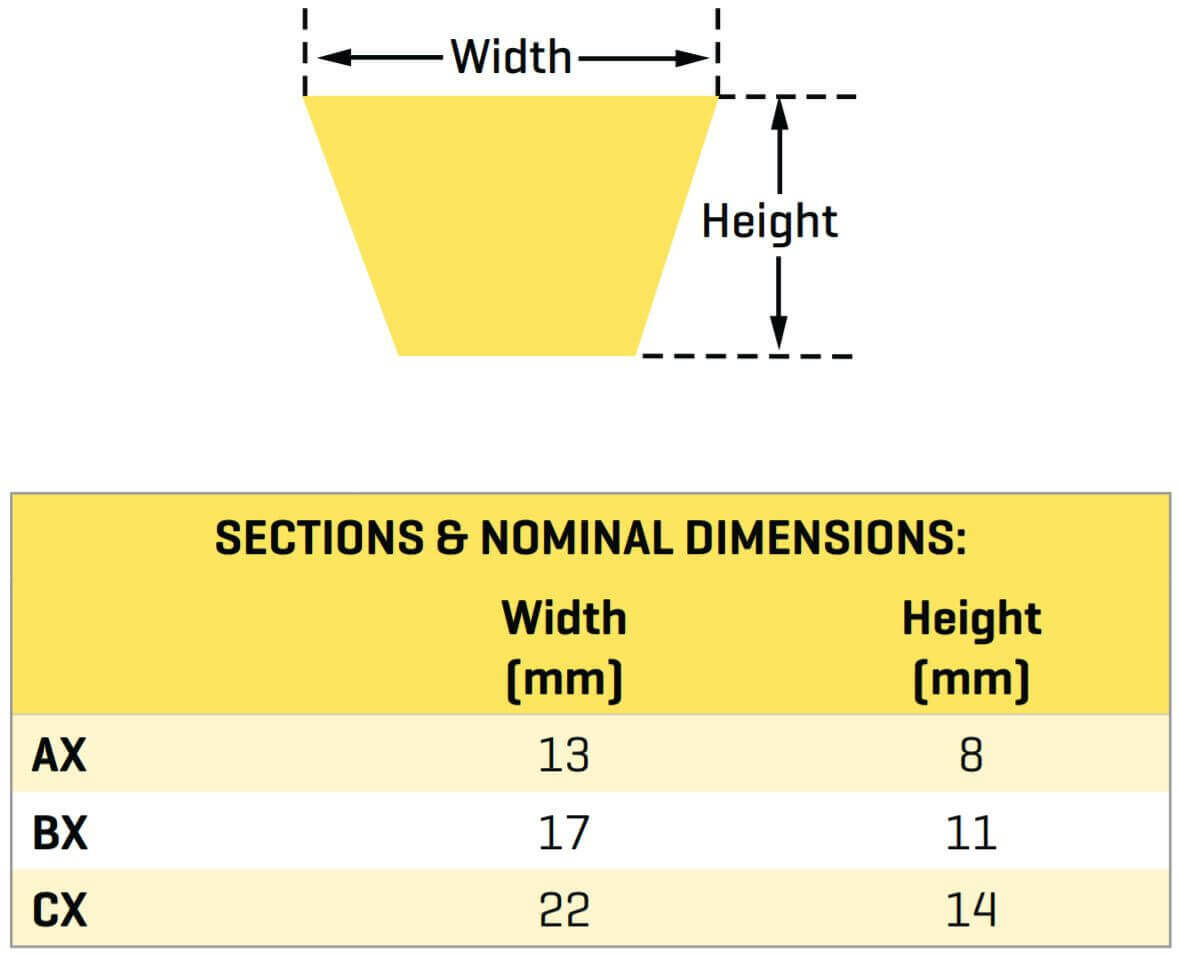

• Classical cross-section.
• Exclusive ethylene EPDM rubber compound for increased temperature range to resist cracking.
• Fibre-loaded compound for improved belt stability.
• Raw edge construction.
• The moulded notch pattern also reduces noise.
• Precision-ground sidewalls give a uniform wedging action.
• Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing.
• Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage.
• Static conductive - ISO 1813 and RMA IP3-3.

Advantages

• 15% capacity increase over wrapped belts.
• Increase efficiency up to 3% over wrapped belts.
• Use smaller diameter pulleys than wrapped belts.
• Moulded notches reduce and evenly distribute thermal and bending stresses.
• Match free system: all sizes meet Gates V80® tolerances, can be installed without matching.
• Back idlers can be used.

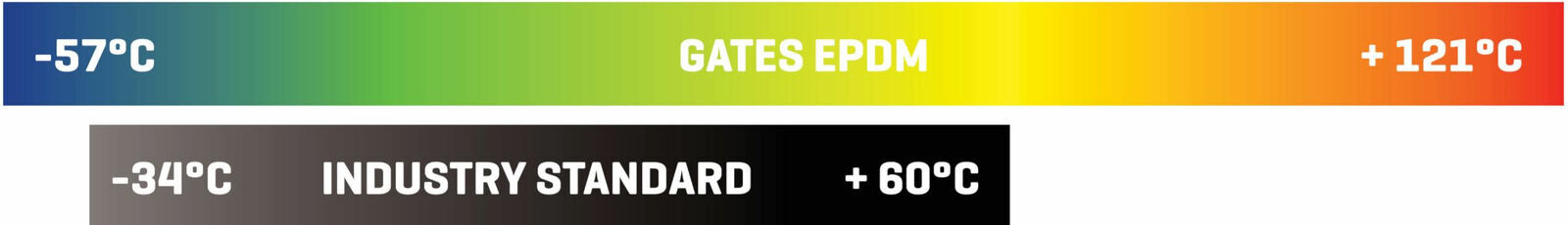

Temperature Range: -57°C to +121°C

AIMS Industrial Supplies Is an Authorised Gates V Belt Distributor
