Description

***This is a clearance sale and there are no returns. Please contact us if you need more details or to inspect the item before purchase.***

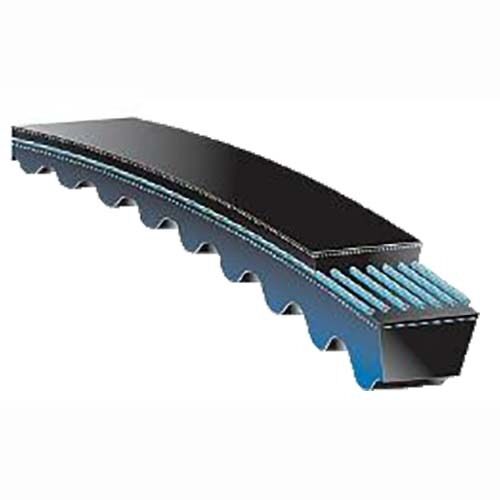

Gates Quad-Power Notched Belt - Narrow Section

Quad-Power 4 has been developed to replace traditional V-belts on applications where space, weight savings and temperature resistance are required.
Extensive testing has shown that Gates Quad-Power 4 V-belts offer up to 50% higher offer ratings than the wrapped Super HC.
The new upgraded EPDM compound allows the belt to handle extreme temperatures up to +130°C.

Construction

Notch depth is in proportion to the cross-section to ensure perfect stability
Precision-ground sidewalls reduce centre distance variations, vibration and uniform wedging action
Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing
Fibre-loaded EPDM compound withstands high heat, ozone, sunlight and provides better cord support
Enhanced blue adhesion layer increases tensile cord bond
Double Flex-Weave textile backing protects the belt against wear – especially when back idlers are used
Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage
Static conductive - ISO 1813 and RMA IP3-3

Advantages

No re-tensioning required
Reduce wrapped belt drive width up to 50%
Increase efficiency up to 3% offer wrapped belts
Use smaller diameter pulleys than wrapped belts
Moulded notches reduce and evenly distributed thermal and bending stresses
Reduce drive maintenance
Match free system: all sizes meet Gates UNISET & V80 tolerances, can be installed without matching
Back idlers can be used

Temperature Range
