Description

Descriptions

  • Gates Multi-Speed belt provides top performance on variable speed drives
  • It adjusts itself to the pulley groove without difficulty, providing a wide range of speeds and speed ratios
  • In addition to the standard Multi-Speed belt line, special sizes (top width, thickness and angle) are available on request

Construction

  • Narrow cross-section
  • Engineered notch contour increases flexibility. The notches ensure maximum heat dispersion, considerably decreasing running temperatures.
  • Flex-Bonded tensile cords
  • Strong transverse rigidity offers high resistance to distortion of the belt in the pulley. This results in even load distribution and wear reduction.
  • Uniform composition and thickness of the undercord ensure smooth and silent running
  • Combination of these construction features gives maximum speed adjustment

Advantages

  • Maximum range of speed changes
  • High load-carrying capacity
  • Smooth machine offeration
  • Exceptionally long belt life

Specifications

  • AIMS SKU A0019665
  • Brand Gates
  • Model Number 9804-0769
  • Barcode Number 72053234046
  • Belt Code 1528V298
  • Length (inch) 29.8
  • Belt Width (mm) 23.81
  • Depth (mm) 17.78
  • Type Multispeed Belt - Industrial
  • System of Measurement Imperial
  • Material Flex-Bonded Polyester Cord
  • Section HV
  • Application Heavy-Duty Belt
  • Series Gates Multi-Speed Belt
SKU: A0019665

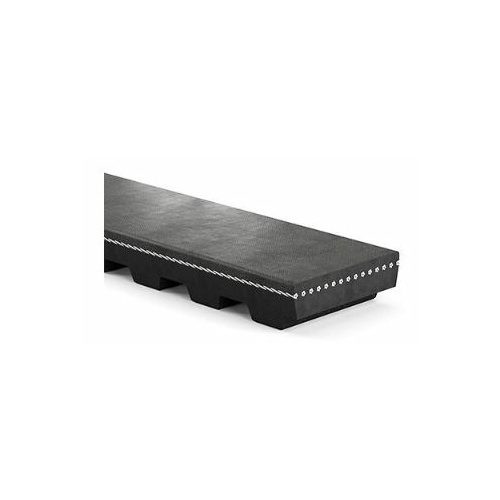

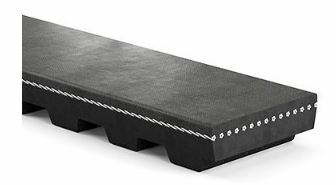

Gates 1528V298 (9804-0769) Multi-Speed (Variable Speed) Belt

Multispeed Belt - Industrial - Heavy Duty Belt

$71.71
RRP $179.27
SAVE $107.56 (60%)
