Description

***This is a clearance sale and there are no returns. Please contact us if you need more details or to inspect the item before purchase.***

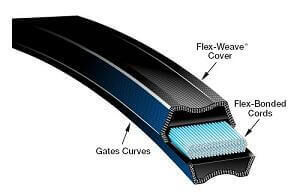

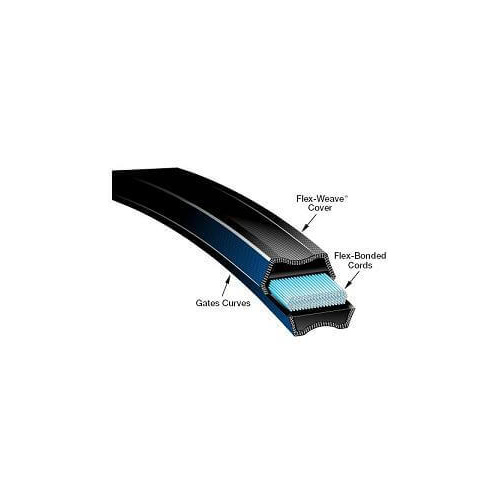

Gates Wrapped, Classical Section, Double Sided V Belt

Gates Hi-Power II Dubl-V Belt is characterised by a double-V profile.
It uses flex-bonded tensile cords, which are highly resistant to flexing forces, and FlexWeave Cover for extended protection.
It is the ideal solution for "serpentine" drives (drives with counter rotating shafts) where power is transmitted from both the top and bottom of the belt.

Construction

Classical cross-section
Unique recessed top and bottom
Fibre-loaded compound for improved belt stability
Gates Curves provide full contact with pulley grooves for uniform loading of cords, uniform wear and increased belt life
Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing
Flex-Weave cover is a patented fabric construction for longer life, providing extended protection to the belt core from oil, dirt and heat
Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage
Static conductive - ISO 1813 and RMA IP3-3

Specifications

Advantages

Power transmission from both sides of the belt
Premium performance
Excellent performance/cost ratio
Suitable for dirty/dusty environments
Match free system: meets Gates V80 tolerances, can be installed without matching
Tolerates mild clutching or drive slip

Temperature Range
