Description

***This is a clearance sale and there are no returns. Please contact us if you need more details or to inspect the item before purchase.***

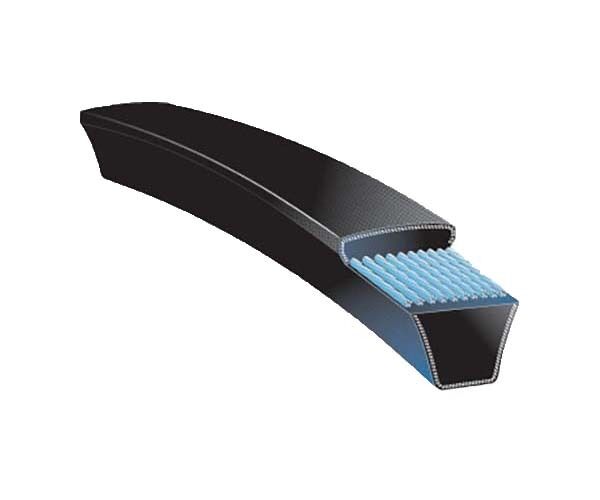

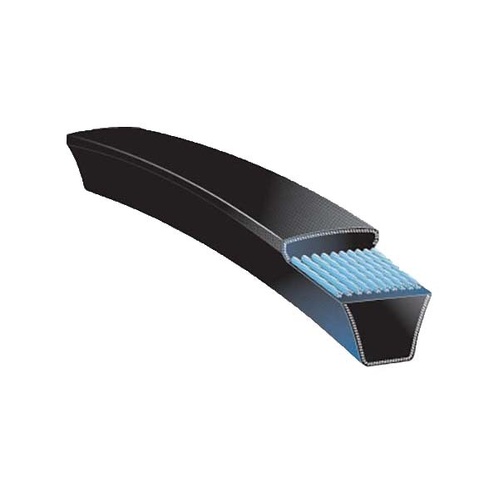

Gates Wrapped, Narrow Cross-Section V Belt

Pioneered by Gates, these narrow cross-sections can transmit up to 3 times the offer of the classical cross-sections (A, B, C & D) in the same amount of drive space
Super HC® also manages speed ranges that a classical V-belt cannot handle. Suitable for all industrial applications, particularly where space, weight and offer capacity are critical.
Designed for heavy industry and the harsh demands of the mining market, Super HC® is Gates most popular V-belt construction

Construction

Narrow cross-section
Fibre-loaded compound for improved belt stability
Gates Curves provide full contact with pulley grooves for uniform loading of cords, uniform wear and increased belt life
Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing
Flex-Weave® cover is a patented fabric construction for longer life, providing extended protection to the belt core from oil, dirt and heat
Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage
Static conductive - ISO 1813 and RMA IP3-3

Specifications

Advantages

Up to 3 times more offer in the same space or same offer in 1/3 to 1/2 less space than classical belts
Cost and space savings
Longer belt life
Suitable for dirty/dusty environments
Match free system: all sizes meet Gates V80® tolerances, can be installed without matching
Back idlers can be used
Tolerates mild clutching or drive slip

Temperature Range
