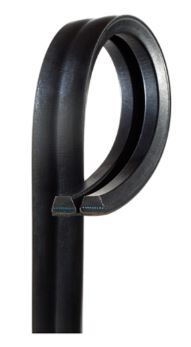

Gates Powerband - RMA - Narrow Section

• Gates Super HC Powerband offers a solution for drives where single belts vibrate, turn offer or jump off the pulleys Gates Super HC Powerband is especially developed for drives subjected to pulsating loads
• It consists of several V-belts joined together by a permanent, high strength tie band, thus being tougher than all the belts taken separately

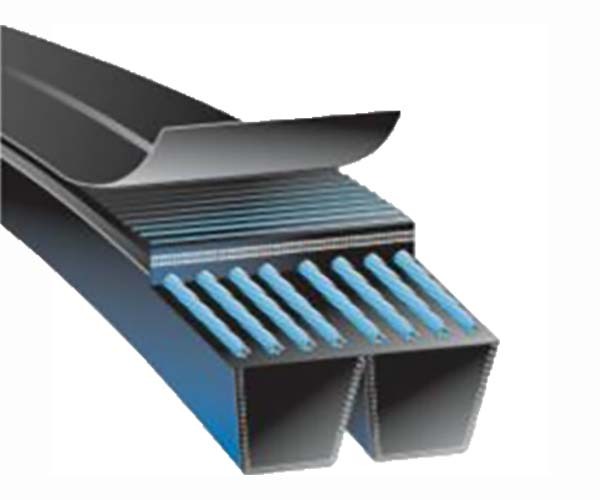

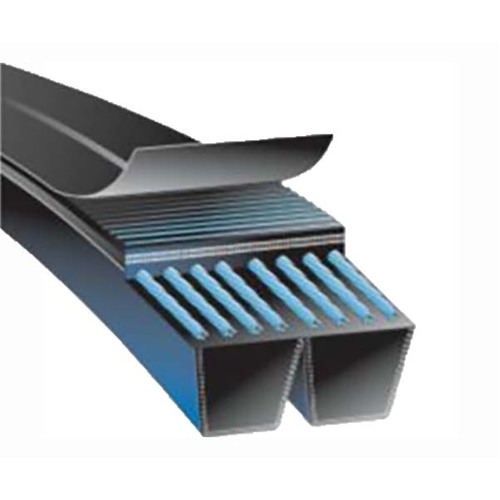

Construction

• Narrow cross-section
• Strong tie band joins the back of all belts
• Fibre-loaded compound for improved belt stability
• Gates Curves provide full contact with pulley grooves for uniform loading of cords, uniform wear and increased belt life
• Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing
• Flex-Weave cover is a patented fabric construction for longer life, providing extended protection to the belt core from oil, dirt and heat
• Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage
• Static conductive - ISO 1813 and RMA IP3-3

Advantages

• Better resistance to vibrations
• High stability and smooth running on the toughest drives
• Important design economies possible
• Premium performance
• Excellent performance/cost ratio
• Suitable for dirty/dusty environment
• Match free system: RMA belts meet Gates V80 tolerances, can be installed without matching
• Back idlers can be used
• Tolerates mild clutching or drive slip

Temperature Range

• Range: -35°C to +80°C
