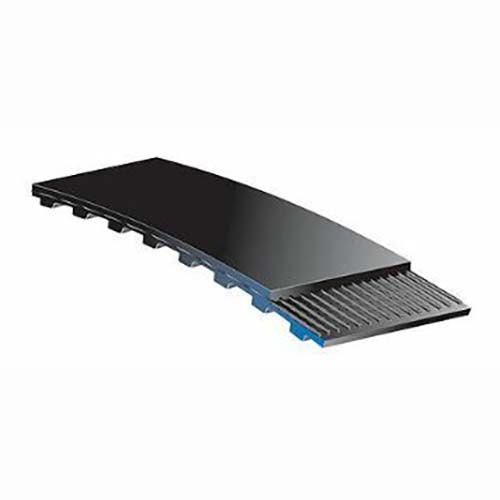

Synchronous Belt - Classical - Extra High Loading

• Gates classical synchronous PowerGrip® belt offers a maintenance free and economical alternative to conventional drives like chains and gears
• Its application range extends from minimum drives (computer printers) to heavy-duty machinery (oil pumps, etc)

Construction

• Trapezoidal tooth form
• Precisely formed and accurately spaced elastomeric teeth ensure correct engagement in the pulley grooves
• Fibreglass tensile cords
• Tough nylon facing protects and reinforces the tooth surface
• For MXL sizes and description, see pages 109

Specifications

• Length (inch): 23
• Belt Width (inch): 0.37
• Pitch (inch): 1/5
• Number of Teeth: 115
• Teeth Depth (mm): 1.27
• Pitch (mm): 5.08
• Depth (mm): 2.3
• Section: XL
• Series: Gates PowerGrip Timing Belt
• Material: Fibreglass Cord
• System of Measurement: Imperial

Advantages

• Power transmission of up to 150kW and speeds of up to 10,000 rpm
• Peripheral speed up to 80 m/s
• Positive slip-proof engagement
• Constant angular velocity
• Efficiencies up to 99%
• Maintenance free
• Wide range of load capacities and speed ratios
• Back idlers can be used

Temperature Range

• Range: -30°C to +100°C
