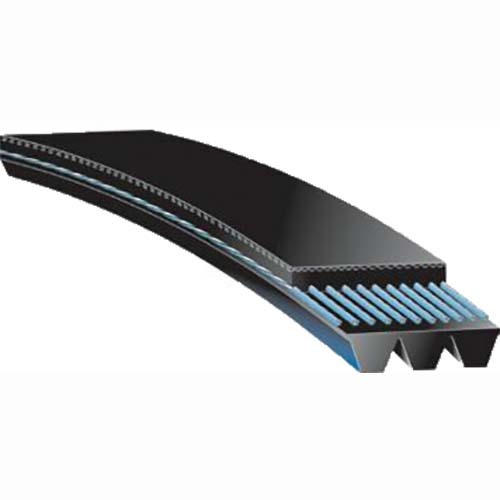

Gates Micro-V Ribbed Belt

• Gates Micro-V multi-ribbed belts ensure outstanding performance on any industrial multi-ribbed drive
• They cover a multitude of industrial applications and fire suitable also for industrial drives in washing machines, vacuum cleaners, lawn mowers, machine tools, medical equipment and many more
• The full line of Micro-V belt products include sleeves in several widths as well as single belts in PJ, PL and PM sections in order to perfectly match customer requirements

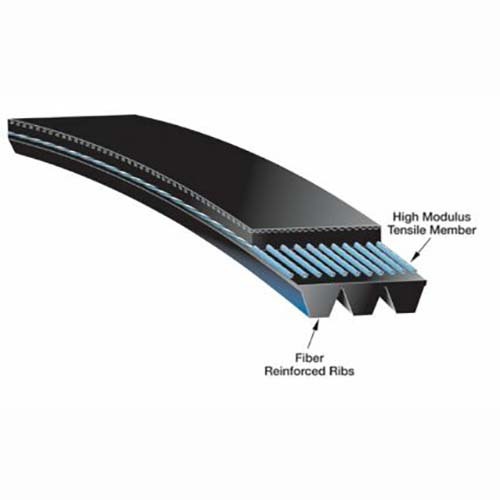

Construction

• Truncated ribs (tips removed) ensure flexibilty,reduce heat build-up and improve rib crack resistance. They also enhance load-carrying capacity on small diameter pulleys
• Fire-loaded compound for improved belt stability
• Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing
• Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage
• Static conductive - ISO 1813 and RMA IP3-3

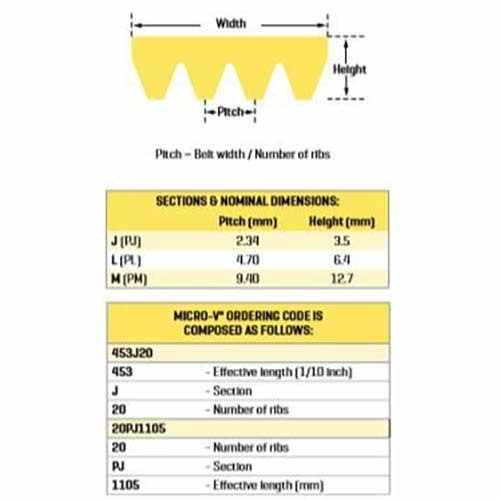

Specifications

• Length (inch): 18
• Ribs: 4
• Top Width (mm): 9.36
• Pitch (mm): 2.34
• Depth (mm): 3.5
• Section: J
• Series: Gates Industrial Micro-V Belt
• Material: Polyester Cord
• System of Measurement: Imperial
• Application: Heavy-Duty Belt

Advantages

• Extremely smooth and cool running
• Very high power capacity per rib
• Long life due to extra load-carrying capacity
• Improved performance on back idlers
• Smaller drive package
• Tolerant of pulley groove debris
• Back idlers can be used.

Temperature Range

• Range: -35°C to +80°C
