Specifications
- AIMS SKU A0156879
- Brand FYH
- Model Number UC208-24/FYH

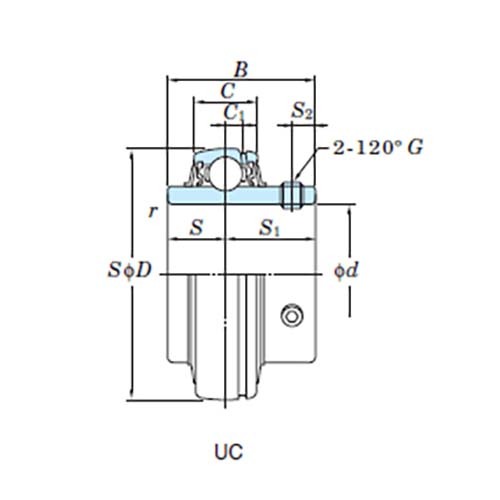

- Outside Diameter 3.15 in
- B (in) 1.937
- Set Screw Brg. Bore G (in) 5/16-24UNF
- S2 (in) 0.315
- S1 (in) 1.189
- S (in) 0.748
- Basic Load Rating C0r (kn) 17.8
- Basic Load Rating Cr (kn) 29.1
- R Min (in) 0.043
- R Min (mm) 1.1
- Factor f0 14
- C (in) 0.827
- C1 (in) 0.236
- D (in) 3.15
- Bore Diameter 1 1/2 in
- Width 1.937 in
- D (mm) 80
- b (mm) 49.2
- S2 (mm) 8
- S1 (mm) 30.2
- S (mm) 19
- C1 (mm) 6
- C (mm) 21
- Shaft Diameter (inch) 1 1/2
- Type Ball Bearing
- System of Measurement Imperial
- Series UC200
SKU: A0156879

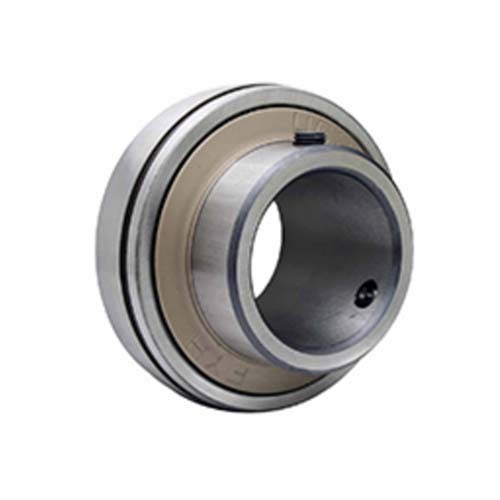

FYH Wide Inner Ring Bearing UC208-24 with Grub Screw 1 1/2 x 3.15"
Wide Inner Ring Bearing with Grub Screw - Imperial
$62.78
