Specifications
- AIMS SKU A0203760
- Brand FYH
- Model Number NA309/FYH
- Dimension S (in) 0.78
- Set Screw Brg. Bore - G (in) 5/8
- Set Screw Brg. Bore - G (mm) M16
- Dimensions (d1) in 2.44
- Dimension (in) C 1.18
- Dimension (in) B1 2.31
- Dimension (mm) B1 58.7
- Dimension (in) B 1.69
- Dimension (in) D 3.94
- Dimensions (D1) mm 62
- Dimension (mm) D 100
- Dimension (mm) B 42.9
- Shaft Diameter (d) 45mm
- Basic Load Rating C0r (kn) 29.5
- Basic Load Rating Cr (kn) 48.9
- Factor f0 13.3
- Dimension (mm) C 30
- Dimension S (mm) 19.8
- Type Ball Bearing Inserts
- Series NA300
SKU: A0203760

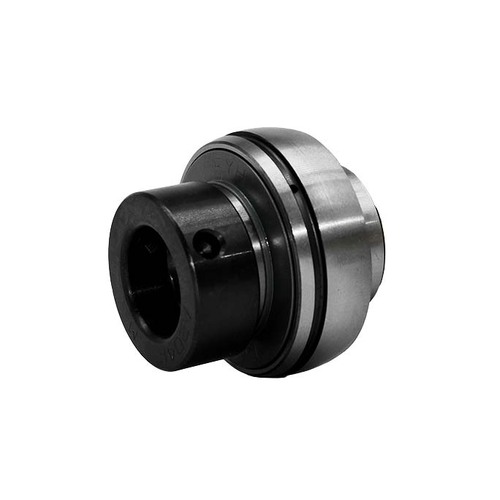

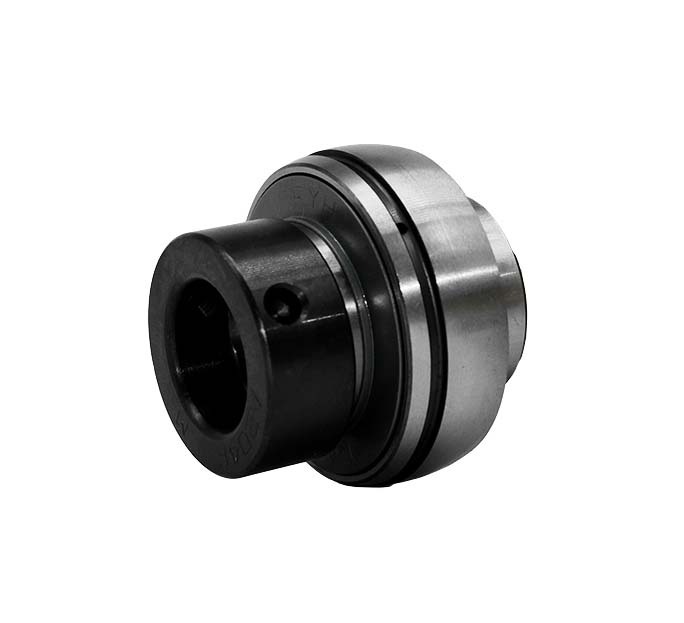

FYH Wide Inner Ring Ball Bearing Insert W/ Eccentric Collar 45mm - NA309
Heavy Duty Ball Bearing Insert W/ Eccentric Collar NA300
$200.78
