Description

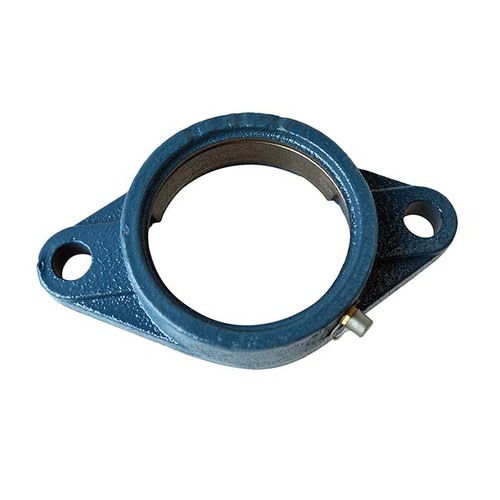

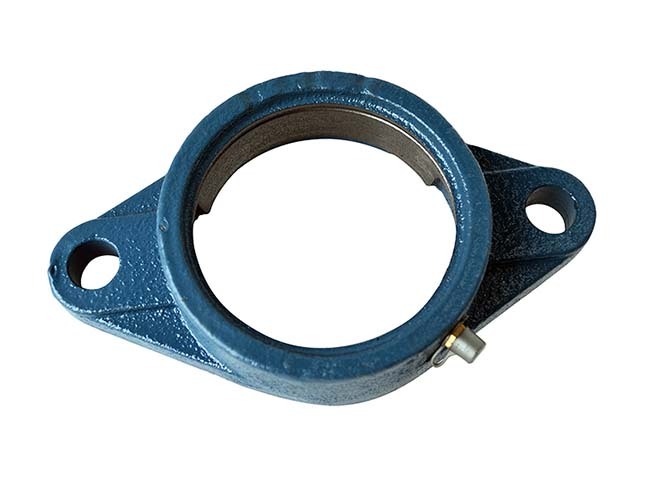

FYH 2-Bolt Flange Bearing Housing - FL300 Series

2-bolt Oval flange type.
FL300 series.

About FYH Strength Housing

FYH bearings can withstand very high loads due to the use of only high quality material and excellent design.
However, when high static or impact loads are encountered, the load capacity of the bearing must be determined.
The housing design is such that it can withstand loads from any angle; however the bearing is strongest with a direct downward load through the base of the unit.
For loads in other directions, the allowable load must be determined specifically for the direction in question.
Rigidity of the base and flatness of the mounting surface also influence the housing strength.
The equipment designer or installer must examine and perform calculations for the complete supporting structure of the bearing.

Specifications

AIMS SKU A0202711

Brand FYH

Model Number FL317/FYH

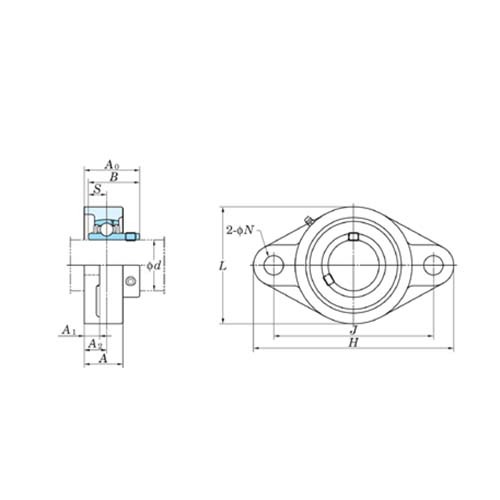

Dimension J (in) 11 13/16

Dimension H (in) 14 9/16

Dimension S (in) 1.575

Dimension B (in) 3.78

Dimension A0 (in) 3 15/16

Dimension A0 (mm) 100

Dimension A2 (in) 1 47/64

Dimension A2 (mm) 44

Dimension A1 (in) 1 1/4

Dimension A1 (mm) 32

Dimension N (in) 1 1/2

Dimension N (mm) 38

Dimension A (mm) 74

Dimension J (mm) 300

Dimension A (in) 2 29/32

Dimension L (in) 8 21/32

Shaft Diameter (d) 96mm (3.78")

Dimension L (mm) 220

Dimension S (mm) 40

Dimension H (mm) 370

Bolt Size (inch) 1 1/4

Bolt Size (mm) M33

Dimension B (mm) 96

Type Bearing Housing
