Description

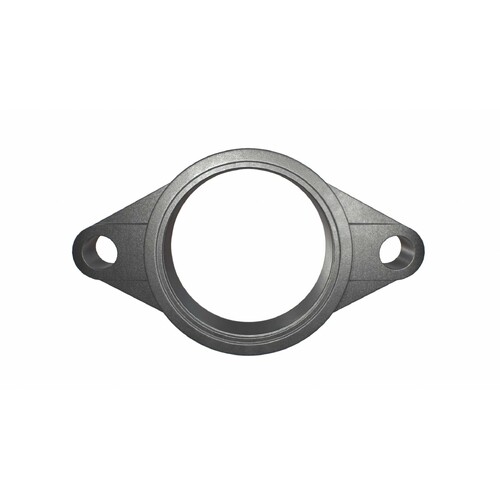

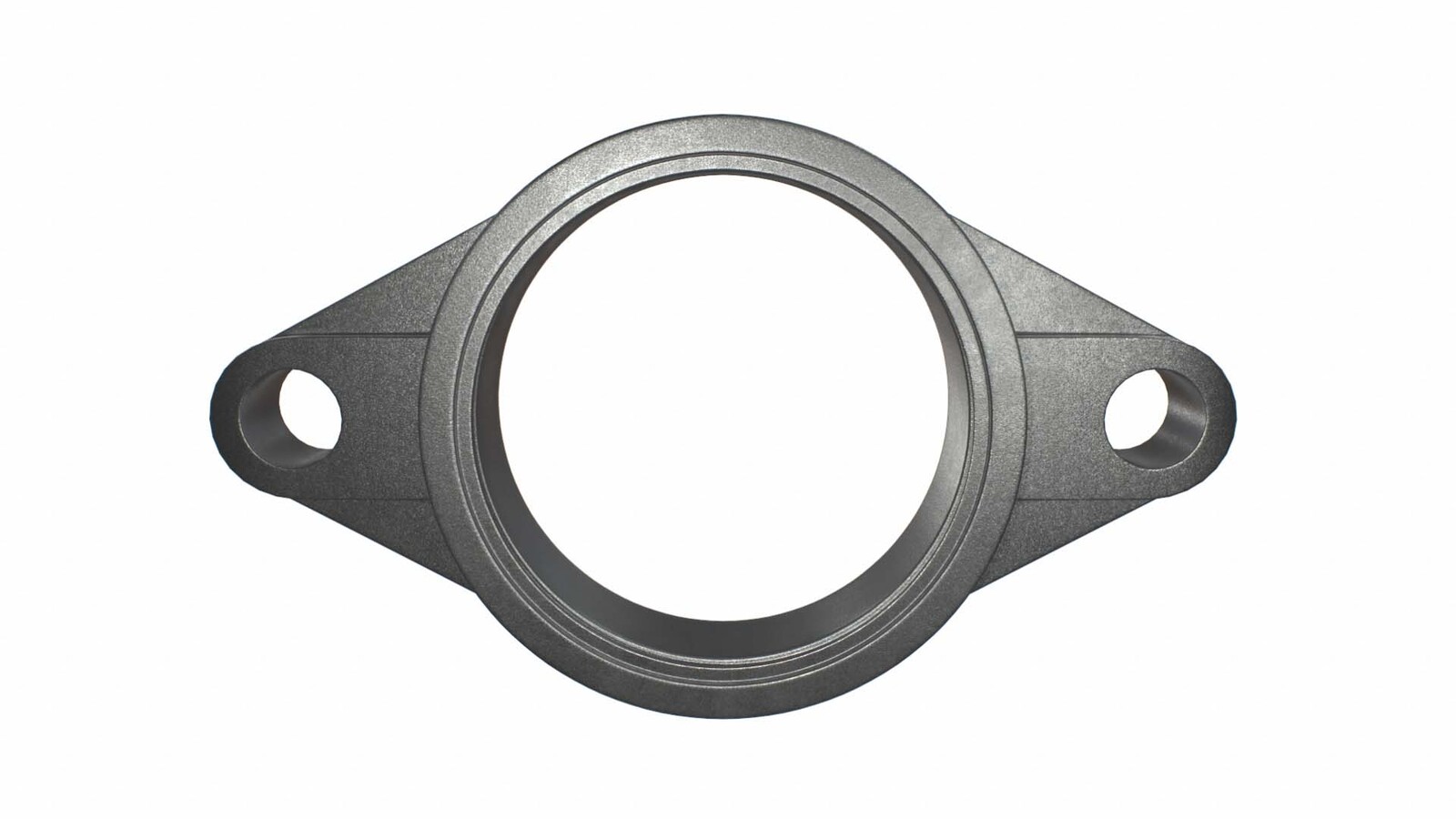

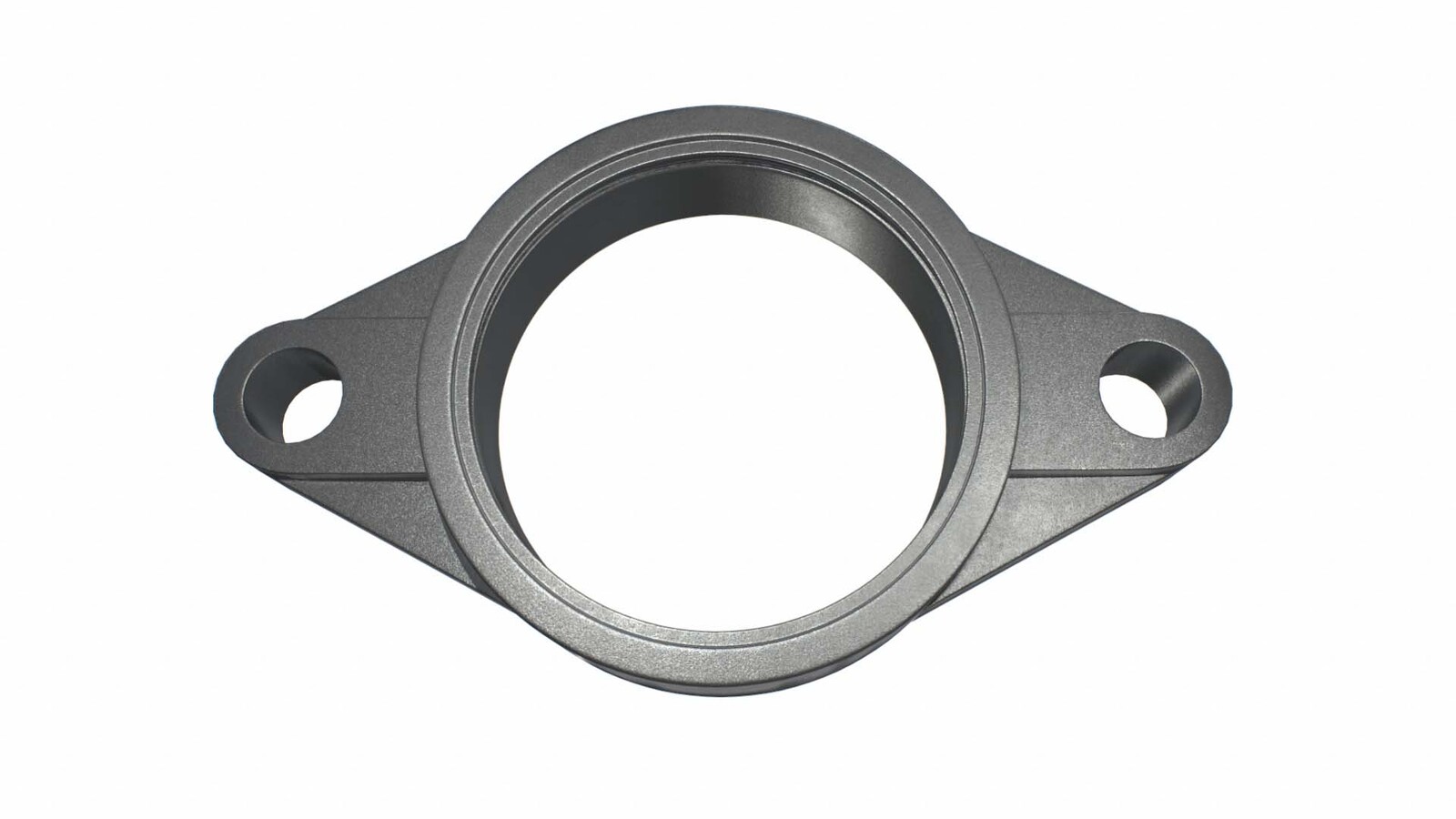

Wide Inner Ring Housings (Extra Light Two Bolt Flange Bearing Housing)

  • Commonly used bearing housings designed for the corresponding wide inner bearing to be installed.
  • This range is well known for its versatility between the bearing and housing options as well as ease of installation.

Specifications

  • AIMS SKU A0147591
  • Brand FYH
  • Model Number FL000/FYH

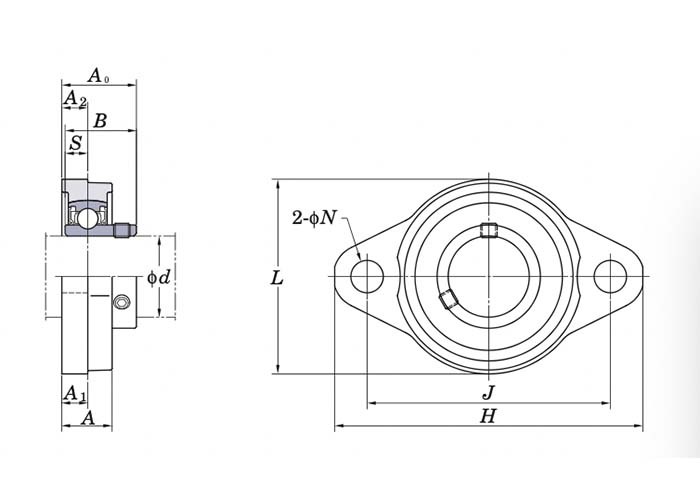

  • A1 (mm) 6
  • S (mm) 5
  • A (mm) 12
  • b (mm) 15
  • H (mm) 60
  • L (mm) 36
  • Factor Fo 12.3
  • Bolt Size (mm) M6
  • A0 (mm) 16
  • A2 (mm) 6
  • J (mm) 45
  • N (mm) 7
  • Dynamic Load (cr) kN 4.55
  • Static Load (c0r) kN 1.95
  • Shaft Diameter d (mm) 10
  • Type Bearing Housing
  • System of Measurement Metric
  • Material Zinc Alloy
  • Item Type Extra Light Two Bolt Flange
SKU: A0147591

FYH FL000 Extra Light 2-Bolt Flange Bearing Housing Suits 10mm Shaft

Extra Light Two Bolt Flange Zinc Alloy Bearing Housing

$15.26
