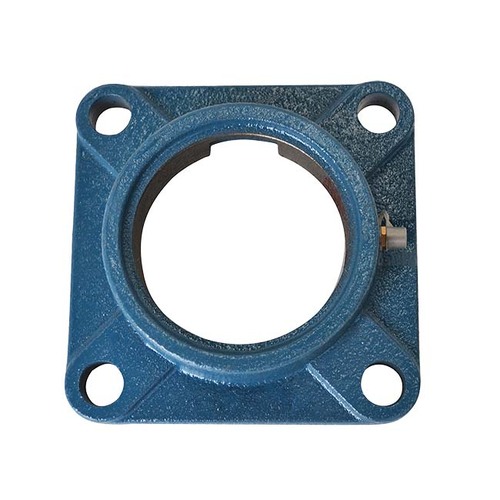

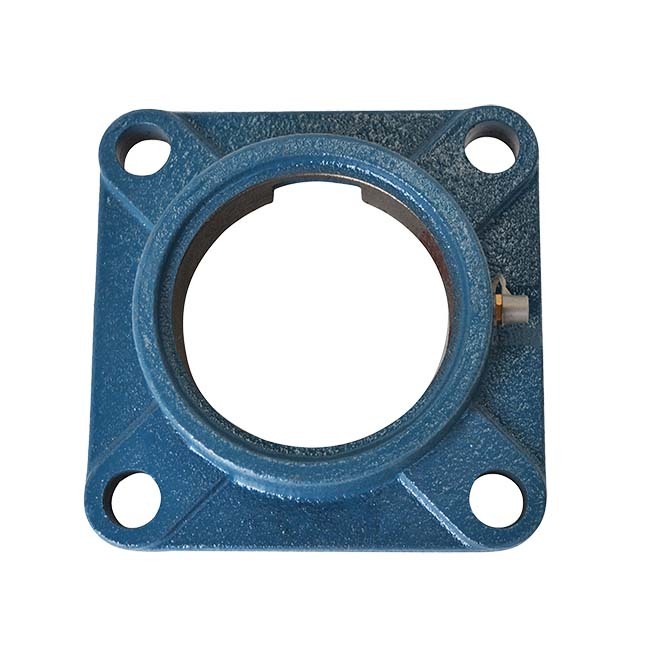

FYH F322 Heavy 4-Bolt Flange Bearing Housing Suits 117mm (4.606") Shaft

Description

FYH 4-Bolt Flange Bearing Housing - F300 Series

Square four-bolt flange type.
F300 series.

About FYH Strength Housing

FYH bearings can withstand very high loads due to the use of only high quality material and excellent design.
However, when high static or impact loads are encountered, the load capacity of the bearing must be determined.
The housing design is such that it can withstand loads from any angle; however the bearing is strongest with a direct downward load through the base of the unit.
For loads in other directions, the allowable load must be determined specifically for the direction in question.
Rigidity of the base and flatness of the mounting surface also influence the housing strength.
The equipment designer or installer must examine and perform calculations for the complete supporting structure of the bearing.

Specifications

AIMS SKU A0202695

Brand FYH

Model Number F322/FYH

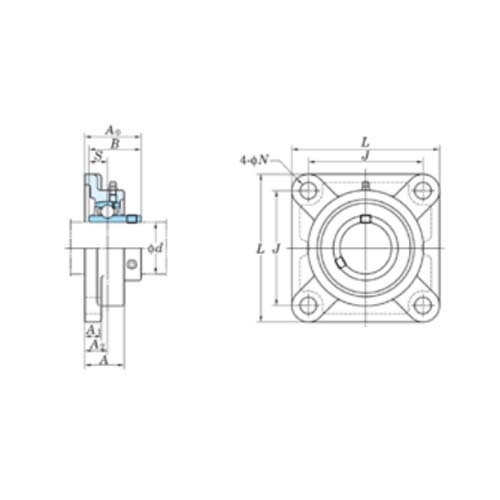

Dimension J (in) 10 15/32

Dimension S (in) 1.811

Dimension B (in) 4.606

Dimension A0 (in) 5 5/32

Dimension A0 (mm) 131

Dimension A2 (in) 2 23/64

Dimension A2 (mm) 60

Dimension A1 (in) 1 3/8

Dimension A1 (mm) 35

Dimension N (in) 1 39/64

Dimension N (mm) 41

Dimension A (mm) 96

Dimension J (mm) 266

Dimension A (in) 3 25/32

Dimension L (in) 13 3/8

Shaft Diameter (d) 117mm (4.606")

Dimension L (mm) 340

Dimension S (mm) 46

Bolt Size (inch) 1 3/8

Bolt Size (mm) M36

Dimension B (mm) 117

Type Bearing Housing
