Description

FYH 4-Bolt Flange Bearing Housing - F300 Series

  • Square four-bolt flange type.
  • F300 series.

About FYH Strength Housing

  • FYH bearings can withstand very high loads due to the use of only high quality material and excellent design.
  • However, when high static or impact loads are encountered, the load capacity of the bearing must be determined.
  • The housing design is such that it can withstand loads from any angle; however the bearing is strongest with a direct downward load through the base of the unit.
  • For loads in other directions, the allowable load must be determined specifically for the direction in question.
  • Rigidity of the base and flatness of the mounting surface also influence the housing strength.
  • The equipment designer or installer must examine and perform calculations for the complete supporting structure of the bearing.

Specifications

  • AIMS SKU A0202689
  • Brand FYH
  • Model Number F314/FYH

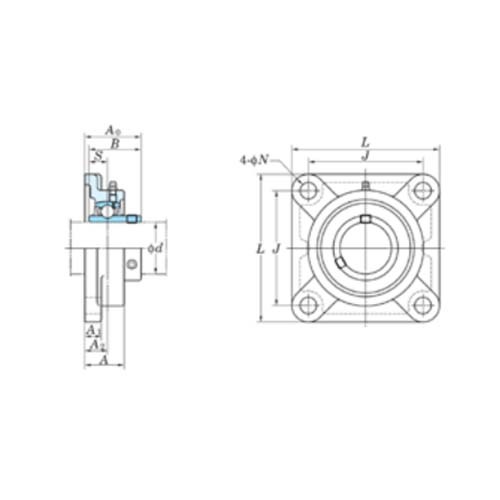

  • Dimension J (in) 7 1/64
  • Dimension S (in) 1.299
  • Dimension B (in) 3.071
  • Dimension A0 (in) 3 3/16
  • Dimension A0 (mm) 81
  • Dimension A2 (in) 1 1/2
  • Dimension A2 (mm) 36
  • Dimension A1 (in) 31/32
  • Dimension A1 (mm) 25
  • Dimension N (in) 63/64
  • Dimension N (mm) 25
  • Dimension A (mm) 61
  • Dimension J (mm) 178
  • Dimension A (in) 2 13/32
  • Dimension L (in) 8 29/32
  • Shaft Diameter (d) 78mm (3.071")
  • Dimension L (mm) 226
  • Dimension S (mm) 33
  • Bolt Size (inch) 7/8
  • Bolt Size (mm) M22
  • Dimension B (mm) 78
  • Type Bearing Housing
SKU: A0202689

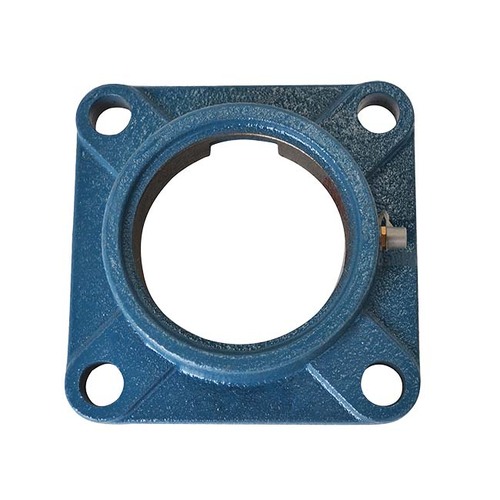

FYH F314 Heavy 4-Bolt Flange Bearing Housing Suits 78mm (3.071") Shaft

FYH 4-Bolt Flange Bearing Housing - F300 Series

$338.80
