Specifications

AIMS SKU A0104897
Brand FYH
Model Number ER207-20/FYH

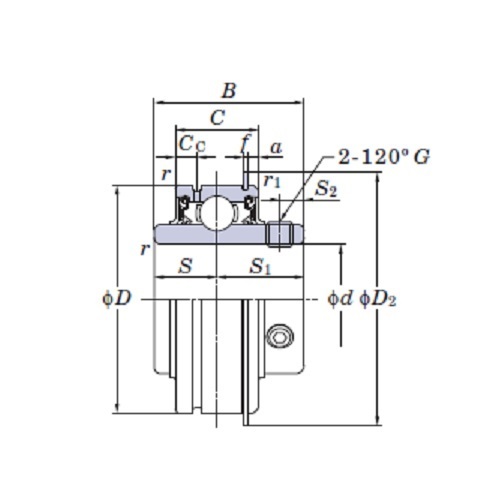

Static Radial Load Rating 15.4
Cc (inch) 0.217
Nominal Inner Ring Width (B) inch 42.9
Nominal Bearing Outer (D) inch 72
Shaft Diameter (d) inch 1 1/4
Nominal Inner Ring Width (B) mm 42.9
Nominal Bearing Outer (D) mm 72
f (inch) 0.065
a (inch) 0.125
D2 (inch) 3.087
S2 (inch) 0.256
S1 (inch) 0.5
S (inch) 0.689
r (min) inch 1.1
C (inch) 24
Dynamic Radial Load Rating 25.7
C (mm) 24
• Type Ball Bearing Inserts
• System of Measurement Imperial
• Series ER200/SER200
• Item Type Grub Screw Ball Bearing
