Flexible Tyre Coupling F90 Half Flange Taperlock 2517 Bush - Finer Power Transmissions

Description

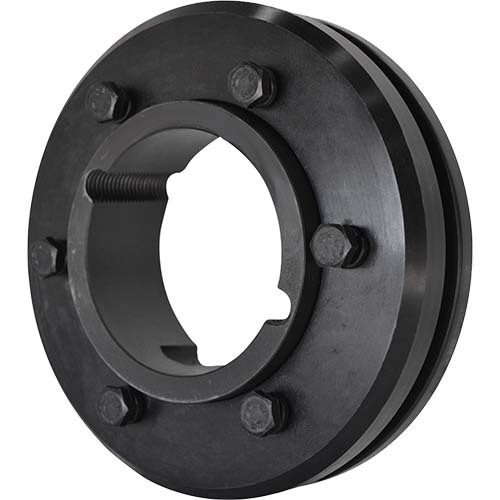

Flexible Tyre Coupling Half Flange

Tyre Couplings consist of two halves joined by a rubber tyre shaped element.
The tyre itself is torsionally soft and flexible; this allows the Tyre Coupling to compensate for large amounts of shock loading and backlash, as well as both parallel and axial misalignment.
Selected sizes in the Fire Resistant Anti-Static (FRAS) compound for those certain sensitive environments.

About High Flexible

Compensates for misalignment, up to; 4° angular, 6mm parallel, 8mm axial.
Torsional flexibility of up to 12°, at max. torque.

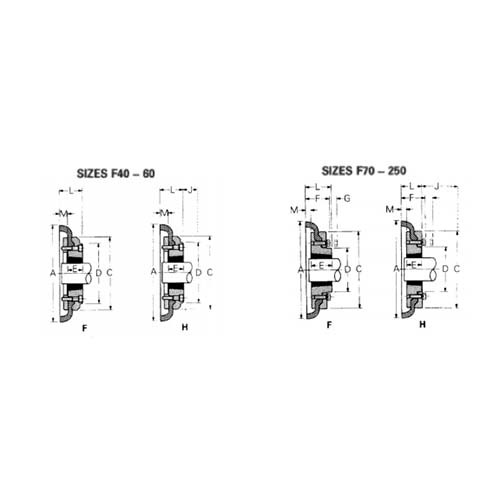

Specifications

AIMS SKU A0148819

Bore B Max. (mm) 65

Kg (F) 7

M 13.5

L (F) 59

E (F) 45

End Float (mm) 3

Max. Misalignment Angular (°) 4

Max. Misalignment Parallel (°) 2.4

Bush (F) Size 2517

Bore B Min. (mm) 16

Size F90

Nominal Torque 500

Power @ 100 Rpm In Kw 5.24

Max. Speed (rpm) 3000

A 235

J 48

G 16

D 108

C 188

F 60

Type Hub & Flange
Flange Type F Type
