Flexible Tyre Coupling F80 Half Flange Taperlock 2517 Bush - Finer Power Transmissions

Description

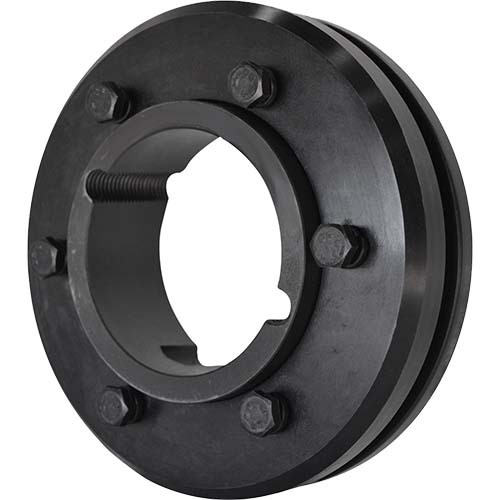

Flexible Tyre Coupling Half Flange

Tyre Couplings consist of two halves joined by a rubber tyre shaped element.
The tyre itself is torsionally soft and flexible; this allows the Tyre Coupling to compensate for large amounts of shock loading and backlash, as well as both parallel and axial misalignment.
Selected sizes in the Fire Resistant Anti-Static (FRAS) compound for those certain sensitive environments.

About High Flexible

Compensates for misalignment, up to; 4° angular, 6mm parallel, 8mm axial.
Torsional flexibility of up to 12°, at max. torque.

Specifications

AIMS SKU A0148818

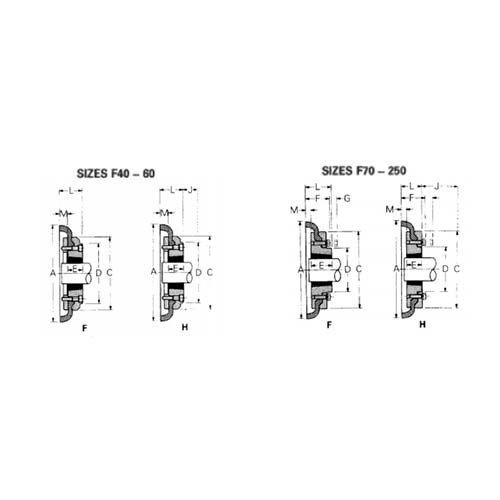

Bore B Max. (mm) 65

Kg (F) 4.9

M 12.5

L (F) 58

E (F) 45

End Float (mm) 2.6

Max. Misalignment Angular (°) 4

Max. Misalignment Parallel (°) 2.1

Bush (F) Size 2517

Bore B Min. (mm) 14

Size F80

Nominal Torque 375

Power @ 100 Rpm In Kw 3.93

Max. Speed (rpm) 3100

A 211

J 42

G 16

D 98

C 167

F 54

Type Hub & Flange
Flange Type F Type
