Flexible Tyre Coupling F50 Half Flange Taperlock 1210 Bush - Finer Power Transmissions

Description

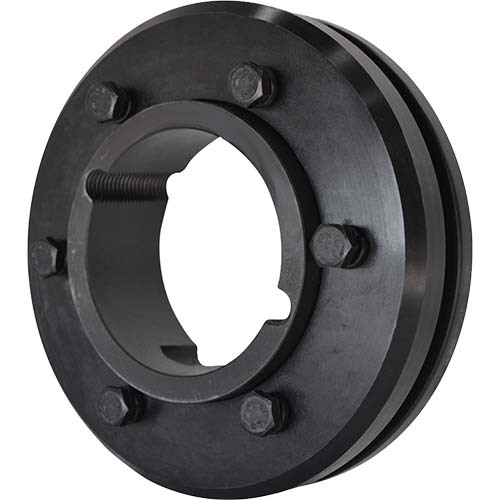

Flexible Tyre Coupling Half Flange

Tyre Couplings consist of two halves joined by a rubber tyre shaped element.
The tyre itself is torsionally soft and flexible; this allows the Tyre Coupling to compensate for large amounts of shock loading and backlash, as well as both parallel and axial misalignment.
Selected sizes in the Fire Resistant Anti-Static (FRAS) compound for those certain sensitive environments.

About High Flexible

Compensates for misalignment, up to; 4° angular, 6mm parallel, 8mm axial.
Torsional flexibility of up to 12°, at max. torque.

Specifications

AIMS SKU A0148815

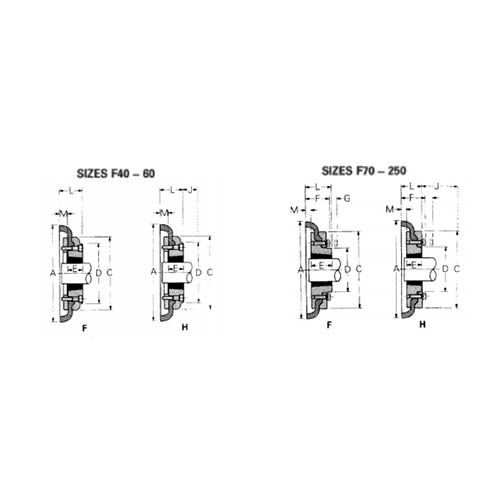

Bore B Min. (mm) 11

Kg (F) 1.2

M 12.5

L (F) 38

E (F) 25

End Float (mm) 1.7

Max. Misalignment Angular (°) 4

Max. Misalignment Parallel (°) 1.3

Bush (F) Size 1210

Size F50

Bore B Max. (mm) 32

Nominal Torque 66

Power @ 100 Rpm In Kw 0.69

Max. Speed (rpm) 4500

A 133

J 38

D 79

C 100

Type Hub & Flange
Flange Type F Type
