Flexible Tyre Coupling F100 - Synthetic - Finer Power Transmissions

Description

Flexible Tyre Coupling - Synthetic

- Synthetic.

About Flexible Tyre Coupling

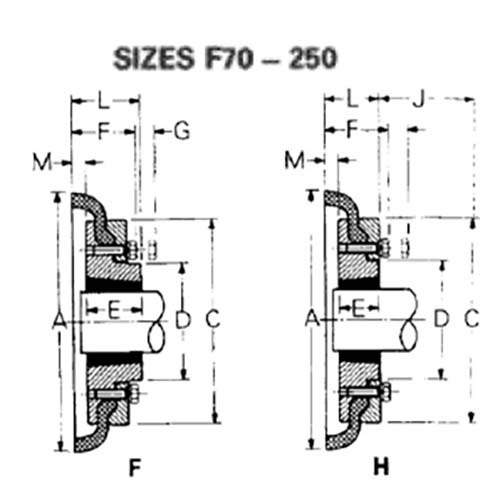

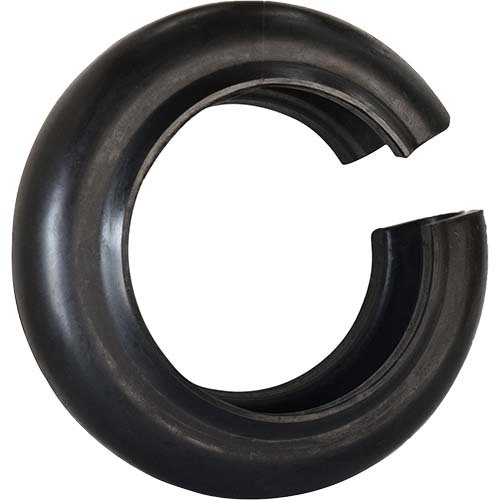

Consisting of two flanges, the two halves are joined by a rubber tyre.
The tyre itself is torsionally soft and flexible, this allows the Tyre Coupling to compensate for large amounts of shock loading and backlash, as well as both parallel and axial misalignment.
Available in the Fire Resistant Anti-Static (FRAS) compound for those certain sensitive environments.

Specifications

AIMS SKU A0152745

Size F100

Max. Speed (rpm) 2600

Power @ 100 Rpm In Kw 7.07

Nominal Torque 675

Bore B Max. (mm) 75

Bore B Min. (mm) 16

Max. Misalignment Parallel (°) 2.6

Max. Misalignment Angular (°) 4

End Float (mm) 3.3

Type Flexible Tyre Coupling

Calculate Shipping

Resources

Technical Data Sheet

Finer Power Transmission Couplings Catalogue
