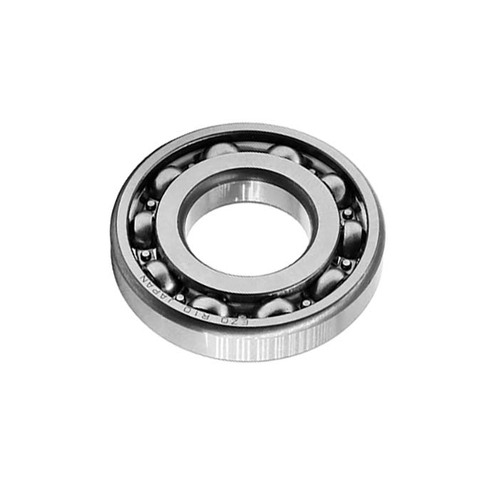

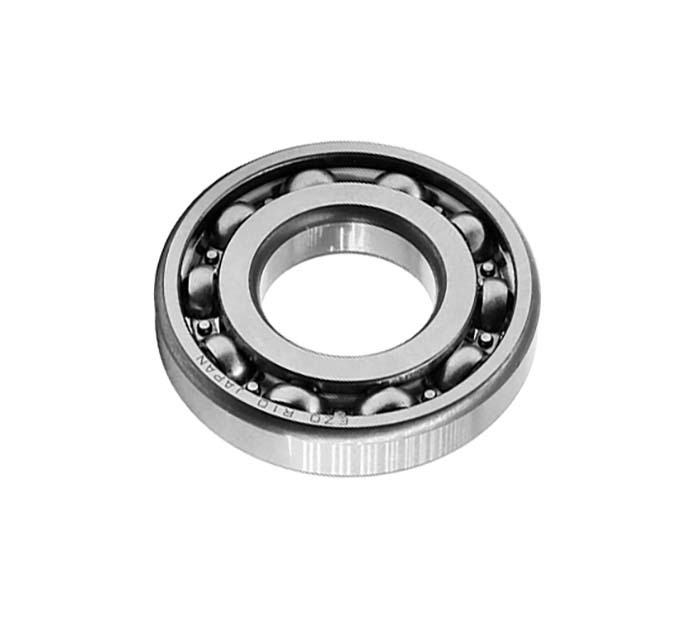

EZO Inch Ball Bearing Open 5/8 x 1-3/8 x 9/32"

Description

EZO Inch Ball Bearing Open

Imperial Ball Bearing.
Opening Bearing.

About Ezo Ball Bearing

Ball bearings are simple but powerful components that minimize friction in rotational applications ranging from industrial machinery to office equipment.
Spherical ball bearings have only minimal contact with their containing races, allowing them to transfer radial or axial loads with rapid, fluid motion.
A variety of housing shapes and lubrication options improve versatility while promoting performance across a long working life.

Specifications

AIMS SKU A0177808

Brand EZO

Model Number R10/EZO

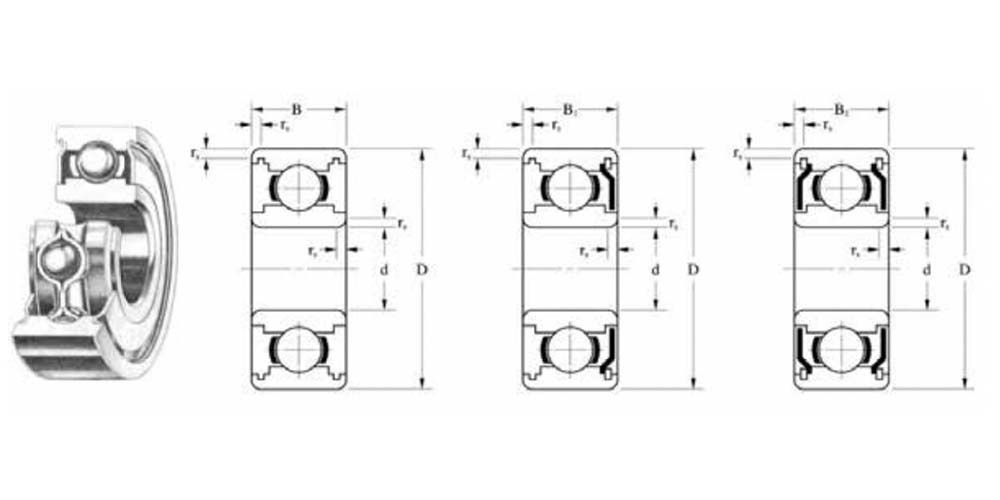

Outer Diameter D (mm) 34.925

Bore Diameter d (mm) 15.875

Bore Diameter x Outer Diameter x Width (in) 5/8 x 1-3/8 x 9/32"

Bore Diameter d (in) 0.625

Outer Diameter D (in) 1.375

Chamfer rs (min) (mm) 0.80

Chamfer rs (min) (in) 0.032

IR Width B (mm) 7.142

IR Width B (in) 0.281

Type Ball Bearing
Series Type R Series
