Description

Wide Inner Ring Housings (Extra Light Pillow Block Bearing Housing)

  • Commonly used bearing housings designed for the corresponding wide inner bearing to be installed.
  • This range is well known for its versatility between the bearing and housing options as well as ease of installation.

Specifications

  • AIMS SKU A0147773
  • Brand FYH
  • Model Number P004/FYH
  • L1 (mm) 25
  • Dynamic Load (cr) kN 9.4
  • H1 (mm) 9
  • L (mm) 100
  • b (mm) 21
  • Shaft Diameter d (mm) 20
  • N (mm) 10
  • Bolt Size (mm) M8
  • h2 (mm) 55
  • A (mm) 20
  • Static Load (c0r) kN 5.05
  • J (mm) 80
  • Factor Fo 13.9
  • H (mm) 28
  • S (mm) 7
  • Type Bearing Housing
  • System of Measurement Metric
  • Material Zinc Alloy
  • Item Type Extra Light Two Bolt Flange
SKU: A0147773 On Sale

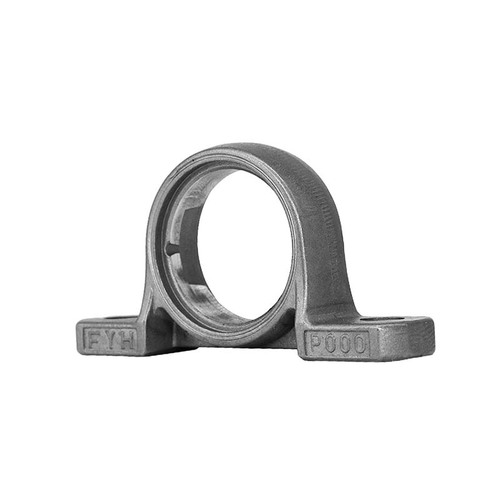

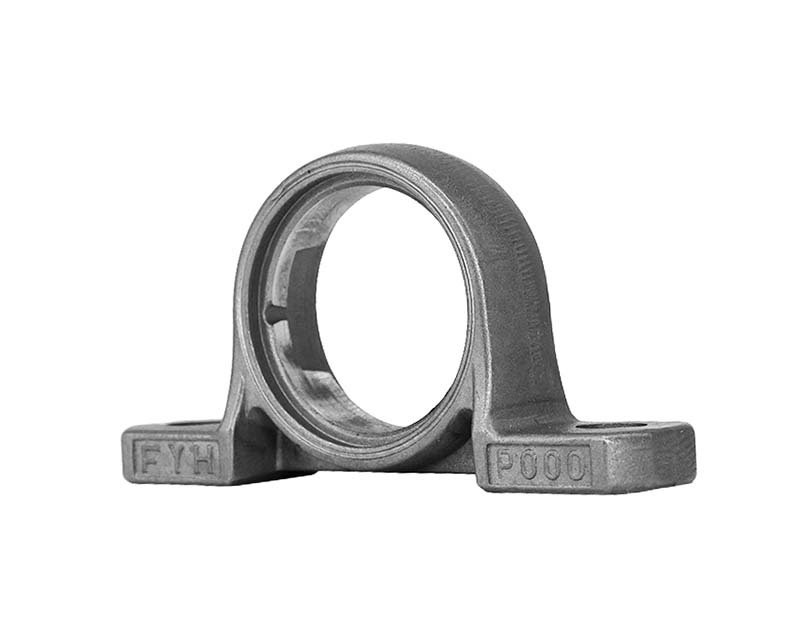

FYH P004 Extra Light Pillow Block Bearing Housing Suits 20mm Shaft

Extra Light Pillow Block Zinc Alloy Bearing Housing

$10.85
$15.50
