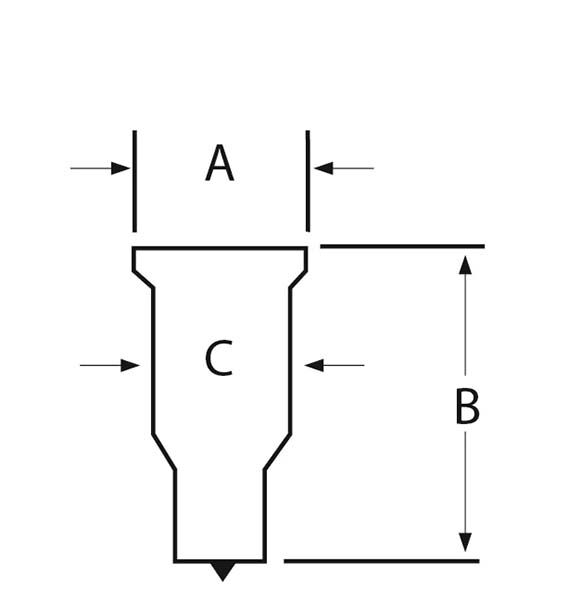

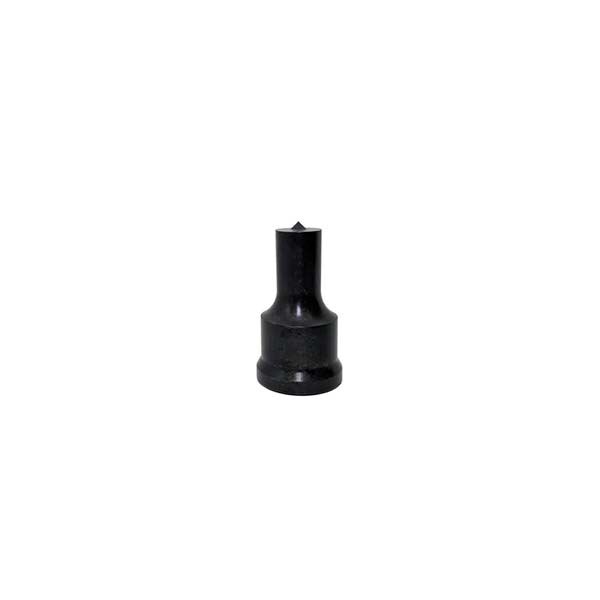

Excision Group 1 Round Punch

• The Group 1 Round Punch is a high-quality punch made in the UK.
• Compatible to: Mubea, Sunrise (before 2002), Metalmaster.
• Matching Die: Group 1
• Note: Other shapes & sizes made to order.

About Punch & Die Tooling

• Excision Punch & Die tooling is produced to exacting standards and is suitable for all types of steelworkers and punching machines.
• Proven manufacturing techniques and a closely controlled heat treatment process guarantees optimum performance.
• Complete Range of Punch & Die Tooling to Suit: Alfra, Coburn, Comaco, Diacro, Durma, Dvorak, Edwards, Enerpac, Fabryka, Fabtech, Femco, Ficep, Gairu, Geka, Henry Pels, Holemaker, IMS, Isumi, J.R. 65, Jing Jang, Kippen, Kingsland, Madison, Marksman, Machine Maker, Metalmaster, Metalmaster, Nitto Kohki, Nova Press, Omes, Omera, Peddinghaus, Pacific, Piranha, Pullmax, Punchtech, QPS, Rocky, Sahinler,Samurai, Scotchman, Scotchman, Sharp, Stanko, Sunrise, Suresharp, Thomas, TSP (hot work), Uni-hydro, Valdarno, Weidemann.

Punching Tips:

• It is not recommended to punch material thicker than the diameter of the punch
• The punch size is the hole size produced
• Clearance of the die should be approximately 10% of the material thickness being punched
• The punch does most of the work and will wear quicker than the die.
• Life can be extended by using Excision Punch & Die Lubricant
• Alignment of punch & dies if very important, extra care is needed on pivoting punch machines
• Ensure the punch & die are securely mounted
• Make sure the stripped plate is as close to the material as practical

Safety Tips:

• Always use eye protection
• Always wear hand protection
• Always make sure the power is turned off while changing tooling
