Description

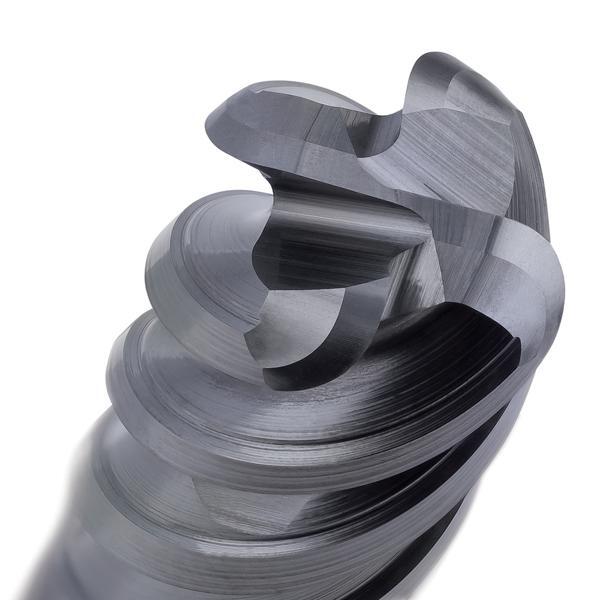

4 Flute Endmill R50 NH Corner Radius - HB - Harmony DUO

  • VHM-ULTRA grade of carbide for high performance.

Features:

  • Endmill, 4 Flute, R50-NH, Cnr Rad, Harmony DUO for high performance.
  • Dual stepped core for optimal stability.
  • Ideal design for pocket milling in MQL & HSC.
  • Suitable for materials up to 48 HRC.
  • AlCrN for longer tool life.

Specifications:

  • Designation: NH
  • Material: VHM-ULTRA
  • Finish: AlCrN
  • Shank Form: HB
  • Helix Angle: R50
  • Point Tolerance: h10
  • Shank Tolerance: h6
  • Point Form: Corner Radius
  • Type: N (finishing)
  • Standard: DIN6527L
  • Rake Angle: 14

Applications:

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)-300HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements-300HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements-350HB
  • Optimal for Steel - High alloy, cast & tool-325HB
  • Optimal for Steel - Corrosion resistant & cast - Martensitic-240HB
  • Optimal for Stainless Steel - Duplex-250HB
  • Optimal for Stainless Steel - Precipitation Hardening-250HB
  • Optimal for Cast Iron, Grey (GG) - Pearlitic-260HB
  • Optimal for Cast Iron, Nodular (GGG) - Pearlitic-250HB
  • Optimal for High-temperature alloys - Fe based-280HB
  • Optimal for High-temperature alloys - Ni / Co-based-350HB
  • Optimal for High-temperature alloys - Ni / Co-based-320HB
  • Optimal for Titanium & Titanium alloys - Alpha alloys
  • Optimal for Titanium & Titanium alloys - Alpha / Beta alloys
  • Optimal for Titanium & Titanium alloys - Beta alloys
  • Optimal for Cast Iron - Chilled-400HB

Specifications

  • AIMS SKU A0129384
  • Brand Sutton Tools
  • Model Number E5650803

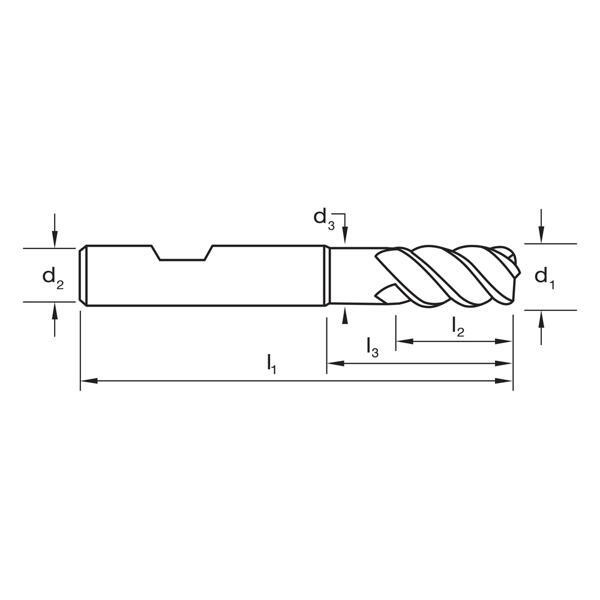

  • System of Measurement DIN6527L
  • Cutting Tip (mm) 8
  • Overall Length (mm) 63
  • Shank (mm) 8
  • Flute Length (mm) 19
  • Helix Angle R50
  • Point Tolerance h10
  • Point Form Corner Radius
  • Sutton Designation NH
  • Rad 0.3
  • D3 (mm) 7.5
  • Shank Form HB
  • L3 Reach Length (mm) 27
  • Rake Angle 14
  • Shank Tolerance h6
  • Type Endmill Harmony DUO
  • Material Sub-Micron Grade Solid Carbide (VHM ULTRA -ISO K40-K50)
  • Finish Aluminium Chromium Nitride (AlCrN)
  • Flutes 4
  • Group Code E565
  • Item Type N (finishing)
SKU: A0129384

Sutton E5650803 8 x 63mm 4 Flute Corner Radius Endmill 0.3° Carbide AlCrN

4 Flute Endmill R50 NH Corner Radius - HB - Harmony DUO

$100.01
