Description

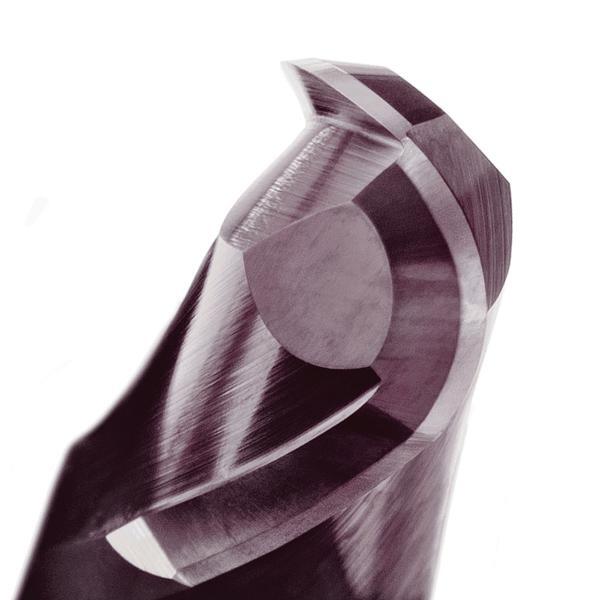

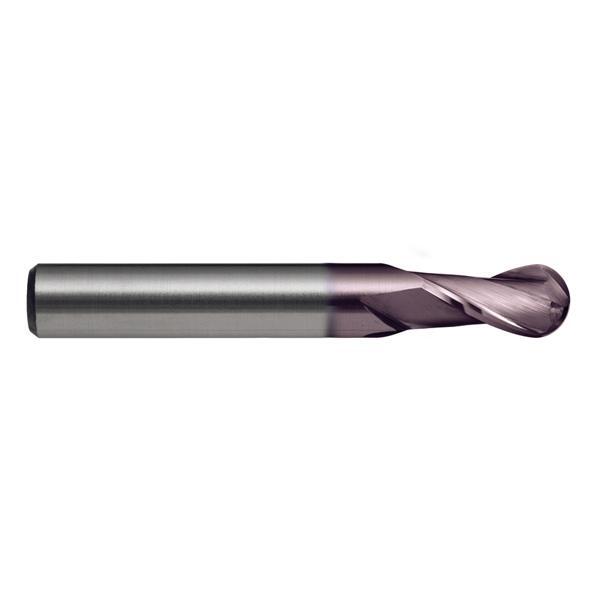

2 Flute Ball Nose Slot Drill - R30 N - Regular - Tecline

  • For profile & contour milling applications
  • 2 Flute Slot Drill Regular Ballnose R30 Long.
  • Suitable for materials up to 1600 N/mm2.
  • TiAlN for longer tool life.

Specifications:

  • Designation: N
  • Material: VHM
  • Finish: TiAlN
  • Shank Form: HA
  • Helix Angle: R30
  • Point Tolerance: h10
  • Shank Tolerance: h6
  • Point Form: Ballnose
  • Type: N (finishing)
  • Standard: DIN6527L
  • Rake Angle: 12

Applications:

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)-125HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)-190HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)-250HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)-270HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)-300HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements-180HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements-275HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements-300HB
  • Optimal for Steel - High alloy, cast & tool-200HB
  • Optimal for Stainless Steel - Austenitic-180HB
  • Optimal for Stainless Steel - Duplex-250HB
  • Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic-180HB
  • Optimal for Cast Iron, Grey (GG) - Pearlitic-260HB
  • Optimal for Cast Iron, Nodular (GGG) - Ferritic-160HB
  • Optimal for Cast Iron, Nodular (GGG) - Pearlitic-250HB
  • Optimal for Cast Iron, Malleable - Ferritic-130HB
  • Optimal for Cast Iron, Malleable - Pearlitic-230HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Non-Heat Treatable-60HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable-100HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non-Heat Treatabl-75HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable-90HB
  • Optimal for Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1-110HB
  • Optimal for Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)-90HB
  • Optimal for Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)-100HB

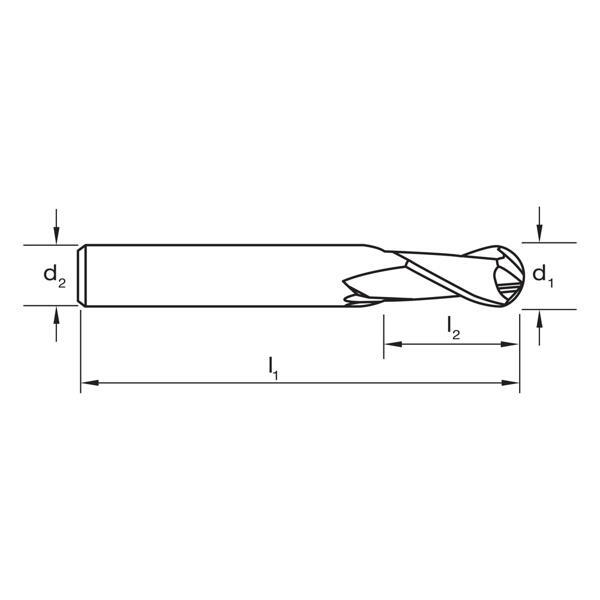

Specifications

  • AIMS SKU A0129351
  • Brand Sutton Tools
  • Model Number E5530200
  • System of Measurement DIN6527L
  • Cutting Tip (mm) 2
  • Overall Length (mm) 57
  • Shank (mm) 6
  • Flute Length (mm) 6
  • Helix Angle R30
  • Sutton Designation N
  • Rake Angle 12
  • Point Form Ballnose
  • Point Tolerance h10
  • Shank Form HA
  • Rad 1
  • Shank Tolerance h6
SKU: A0129351

Sutton E5530200 2 x 57mm 2 Flute Ball Nose Slot Drill Carbide TiAIN
