Description

Rougher Carbide - NR (normal) - R25 Al

  • For roughing applications.
  • NR geometry allows for heavy cuts.
  • For soft non-ferrous aluminium alloys.
  • High rake angle for long chipping materials.

Specifications

  • Material: VHM
  • Surface Finish: Brt
  • Sutton Designation: Al
  • Geometry R25 NR R25 NR
  • Shank Form (DIN 6535): HB
  • Shank Tolerance: h5

Applications

  • Optimal for Aluminum & Magnesium, wrought alloy - Non-Heat Treatable-60HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable-100HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non-Heat Treatabl-75HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable-90HB

Specifications

  • AIMS SKU A0129933
  • Brand Sutton Tools
  • Model Number E4470600
  • System of Measurement DIN6527L
  • Cutting Tip (mm) 6
  • Overall Length (mm) 57
  • Shank (mm) 6
  • Flute Length (mm) 13
  • Geometry R25 NR
  • Sutton Designation Al
  • Shank Tolerance h5
  • Product Group B0208
  • Shank Form HB
  • Type Rougher Endmill
  • Material Sub-Micron Grade Solid Carbide (VHM-ISO K40)
  • Finish Brt
  • Flutes 3
  • Group Code E447
SKU: A0129933

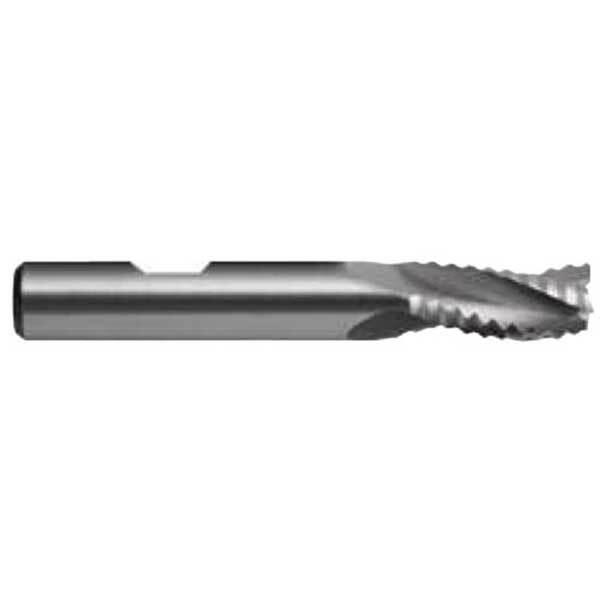

Sutton E4470600 6 x 57mm 3 Flute Roughing Endmill Carbide Bright

Rougher Carbide - NR (normal) - R25 Al

$46.48
