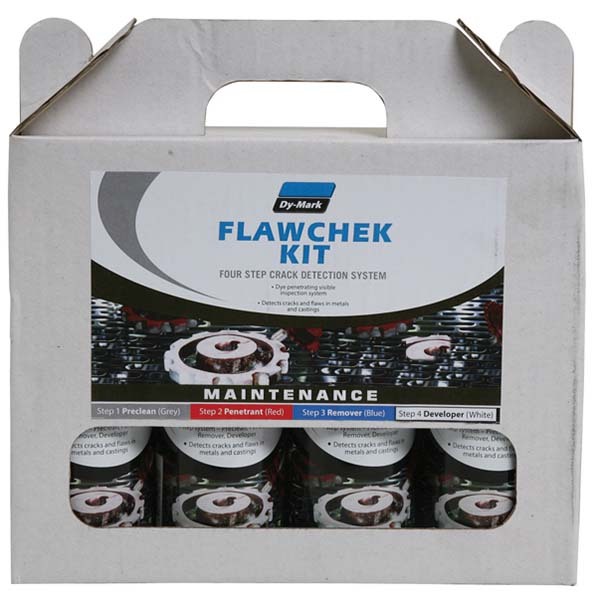

Dy-Mark Flawchek 4-Part Inspection Kit - Crack Detection System

  • Dy-Mark Flawcheck is a four-part visible inspection process that conforms to ASME ASTM E165 and AS 2062 Type 2 Method C.
  • Flawcheck is ideal for detecting cracks and flaws in metal castings that are not visible to naked eye.
  • The flawcheck system is a method of non-destructive testing which will detect flaws on metal surfaces.

Features & Benefits

  • Dye penetration visible inspection system detects cracks and flaws in metal and castings.
  • 4-step system - Perclesn, Penetrant, Remover, and Developer.
  • Fast, efficient and cost effective method.
  • Conforms to AS2062 Type 2 Method C.

Consumer Safety Warning

  • Step 1, (Preclean), contains Methylene Chloride which is suspected of causing cance.
  • Use personal protective equipement as required.
  • Use in a well-ventilated area.
  • Do not eat, drink or smoke when using this product.

About Flawcheck 4-Step System

Step 1 - Preclean (Grey)

  • It is essential to ensure that the part/area to be tested a clean, dry and free from all surfaces contamination (e.g. grease, oil, rust and paint).
  • Surface contaminants can cover a flaw, inhibiting the entrance of the dye.
  • Spray the area to be inspected and wipe throughly with cloth.
  • Allow clean surface to dry.

Step 2 - Penetrant (Red)

  • Spray penetranr dye over the area that is to be inspected.
  • Allow penetrant to dwell for 10 minutes.
  • Dwell time should be extended in extremly cold conditions.

Step 3 - Remover (Blue)

  • Allow excess Penetrant to drain.
  • Wipe over inspected surface with a dry cloth.
  • Then spray remover on another cloth and wipe surface to remove excess penetrant.
  • Allow surface to dry before Developer.

Step 4 - Developer (White)

  • Spray a light coat of the Developer over the area to be inspected, avoiding a heavy film.
  • Leave Developer to dry and inspect parts of flaws after 2 -3 minutes.
  • If very fine flaws are suspected, the parts should re-inspected after 20 minutes.

Specifications

  • AIMS SKU A0000380
  • Brand Dy-Mark
  • Model Number 19013599
  • Type Flawcheck Spray
SKU: A0000380

Dy-Mark Flawchek 4-Part Inspection Kit

Dy-Mark Flawchek 4-Part Inspection Kit
