Description

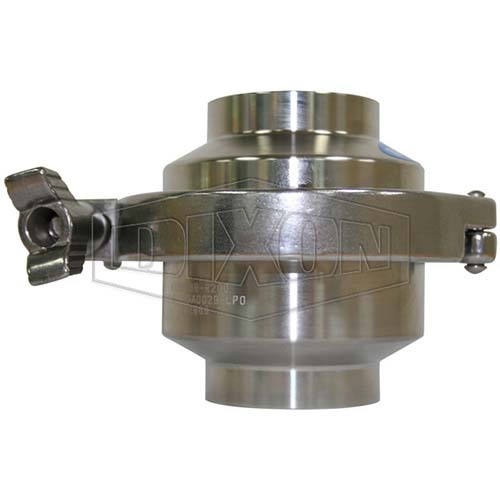

Dixon Spring Check Valve 316L Stainless Steel Weld Connection

Applications

  • Hygienic check valve for the food and pharmaceutical industry
  • Suitable for low and medium viscosity fluids

Specifications

  • 3A authorized 58-00

Features

  • Full size flow plate
  • Long stem bushing for increased cycle life
  • Field serviceable (no special tools required)

Construction

  • CF8M 316 Stainless Steel

Available Options

  • Various end connections available including: Weld, Clamp, Triclover, SMS, DIN and RJT. Contact Dixon for details.
  • Standards include 3A, RJT, SMS, DIN, IDF and Triclover, specify when ordering.

Specifications

  • AIMS SKU A0156451
  • Brand Dixon
  • Model Number B45MPBB-R100
  • Size (inch) 1"
  • Seat FKM
  • Seal EPDM
  • Maximum Operating Pressure (PSI) 145
  • DN Size 25
  • Temperature Range (°F) 15 to 200
  • Type Check Valve
  • Material 316L Stainless Steel
  • Style Weld Connection
SKU: A0156451

Dixon 1" Check Valve Spring 316L Stainless Steel Steel Weld Connection B45MPBB-R100

Dixon Spring Check Valve Weld Connection

$484.26
