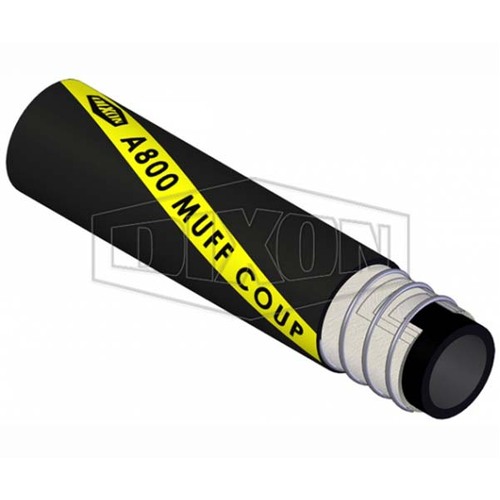

Dixon Rubber Material Handling Muff Coupling Hose

Description

Dixon Rubber Material Handling Muff Coupling Hose

Applications

Heavy-duty material handling hose, suitable to handle pressure or suction in the transfer of bulk, slurry, cement, and abrasive products
Especially designed for very severe applications (mines, tunnels, etc.)

Construction

Tube: NR/SBR
Cover: Rubber, yellow stripe, smooth cover
Reinforcement: 4 ply synthetic cord; wire helix

Features

Ozone resistance
UV Stabilised
Antistatic copper wire
Abrasion Value Max: 70mm³

Available Lengths

Cut Length: 5 m
Coil Lenght: 20 m

Specifications

AIMS SKU A0068585CUT

Brand Dixon

Model Number A800150

Hose Length 5 m

Application Slurry & Abrasive Materials

Hose Outside Diameter (mm) 182

Working Pressure (mpa) 1

Color Black With Yellow Stripe

Bend Radius (mm) 1067

Temperature Range -30°C to 70°C

Burst Pressure 435 psi

Hose Inside Diameter (mm) 152

Weight kg/m 10.7

Working Pressure (psi) 145

Type Material Handling Muff Coupling Hose
Material NR/SBR
