Description

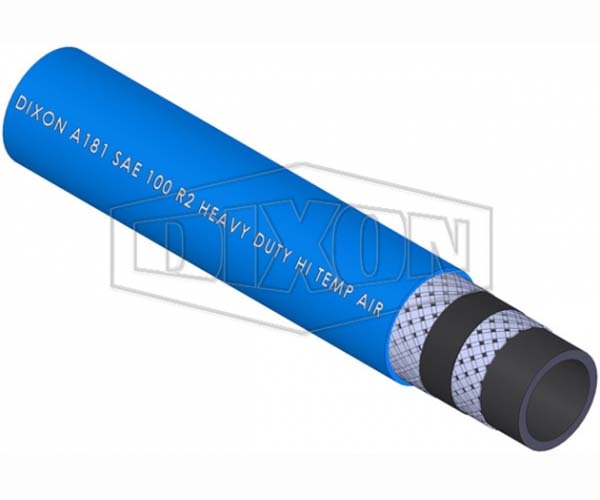

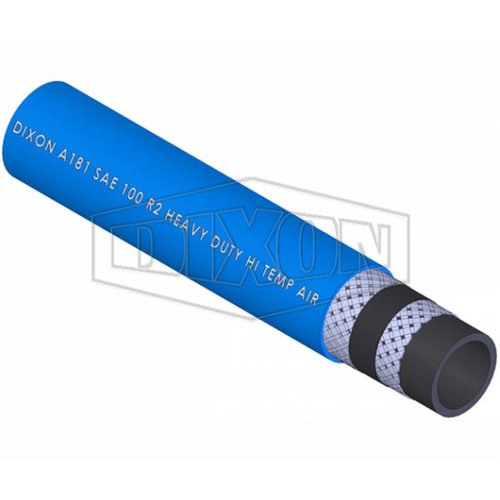

Dixon Rubber High Temperature 135°C Steel Bull Braid Hose

Applications

For medium-high pressure hydraulic systems in industry, compressors and mining where operating temperatures are up to +135° C.

Construction

Lining: High Temperature Hydraulic Oil Resistant Special Synthetic Rubber
Reinforcement: Two High Tensile Steel Braid
Cover: Bule cover, Oil, abrasion and weather resistant special synthetic rubber

Specifications

SAE100 R2 ATS/ISO 1436 2009
DIN EN 853 2 SN
ISO 1307

Note

ROD (Reinforcement Outer Diameter) is the diameter over the wire reinforcement. This dimension is for hydraulic hose as it helps to determine the correct crimping diameter.

Available Lengths

Cut Length: 5 m
Coil Lenght: 20 m

Specifications

AIMS SKU A0068357C20

Brand Dixon

Model Number A181050020

Hose Length 20 m

Application Air & Water

Burst Pressure 4500 psi

Color Blue

Working Pressure (psi) 1131

Dash Size -32

Temperature Range -50°C to +135°C

Weight kg/m 3.06

Hose ID (mm) 50.8

Bend Radius (mm) 630

Working Pressure (bar) 78

Hose Outside Diameter (mm) 66.7

Burst Pressure Bar 310

Reinforcement Outer Diameter (mm) 63.5

Negative Pressure Bar -0.8

Type High Temperature Steel Bull Braid Hose
Material Special Synthetic Rubber
