Description

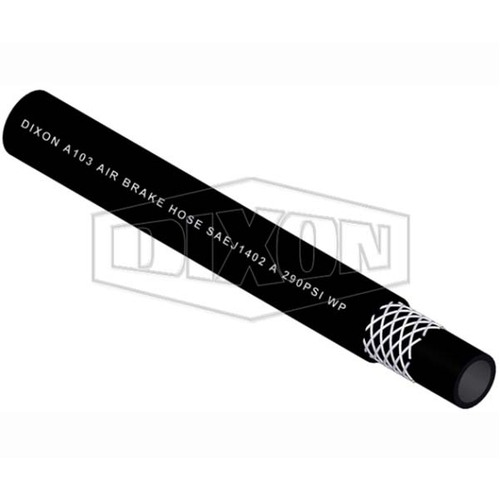

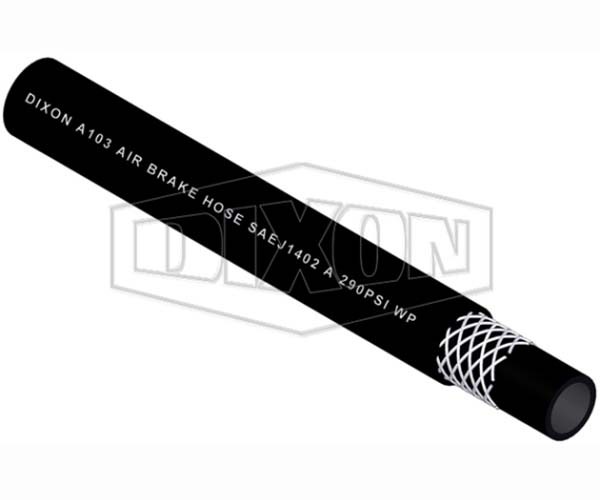

Dixon Rubber Air Brake Hose

  • Minimum Cut Length: 20 metres
  • Standard Coil Length: 152 metres

Applications

  • Extruded rubber air hose for conveyance of air in truck brake systems.

Construction

  • Tube: EPDM
  • Cover: EPDM
  • Reinforcement: 4 spiral polyester yarn

Specifications

  • According to SAE J1402 (Table 1, Type A), Synthetic Oil Resistant Compound

Safety Note

  • Bend radius figure is calculated as theoretical.

Specifications

  • AIMS SKU A0068279R152
  • Brand Dixon
  • Model Number A103010152
  • Hose Length 152 m
  • Application Automotive
  • Burst Pressure 870 psi
  • Color Black
  • Working Pressure (psi) 290
  • Temperature Range -35°C to 75°C
  • Working Pressure (mpa) 2
  • Weight kg/m 0.38
  • Hose ID (mm) 10
  • Bend Radius (mm) 1201
  • Hose Outside Diameter (mm) 19
  • Type Air Brake Hose
  • Material EPDM Rubber
SKU: A0068279R152

Dixon 10mm x 152m Rubber Air Brake Hose A103010152

Dixon Rubber Air Brake Hose

$989.11
