Description

Dixon Check valve Spring-Loaded Inlet Brass

  • Screwed female BSP conforming to ISO228 (equivalent to DIN259 & BS2779)
  • Body materials: Brass CW 617N; stainless steel spring AISI 302;
  • Nitrile Butadiene rubber seal
  • Full bore

Applications

  • Suitable for industrial; pneumatic and hydraulic installations.
  • Ideal for use with hot or cold water; oils or compressed air.
  • Can be installed in vertical; horizontal or oblique positions.

Specifications

  • AIMS SKU A0069040
  • Brand Dixon
  • Model Number BECV025
  • Size (mm) 25
  • Thread BSP

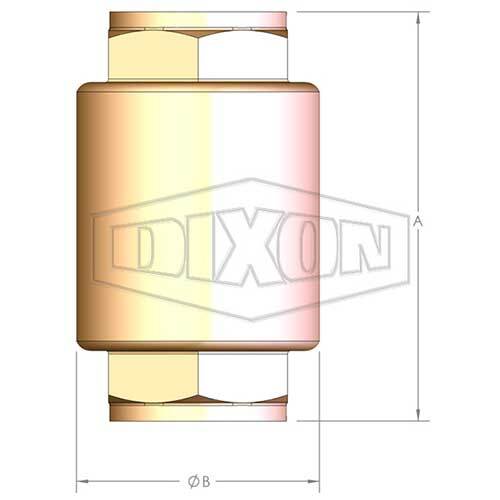

  • Dimension A (mm) 74.5
  • Working Pressure (psi) 360
  • Working Pressure (mpa) 2.5 MPa
  • Size (inch) 1
  • Dimension B (mm) 48
  • Temperature Range Air: -20°C to 110°C Water: -0°C to 90°C Gas: -20°C to 60°C
  • Type Check Valve
  • Material Brass
  • Style Europa Brass Stem
  • Item Type Check Valve Spring Loaded Inline
  • Seat Nitrile Butadiene Rubber
SKU: A0069040

Dixon BECV025 25 mm Check Valve Spring-Loaded Inline Europa Brass Stem

Dixon Brass Inline Spring Check Valve Europa Brass Stem

$32.70
