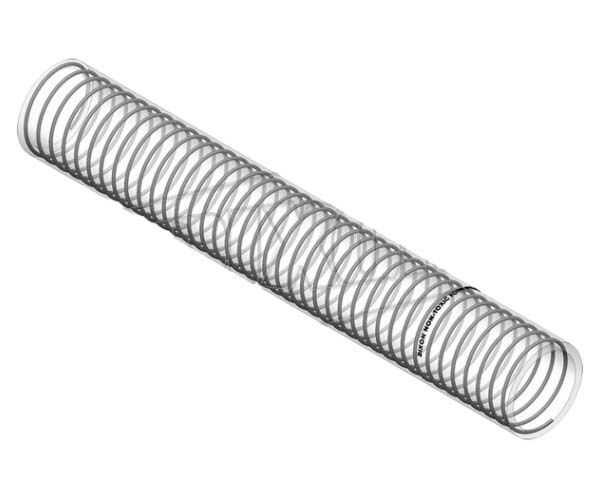

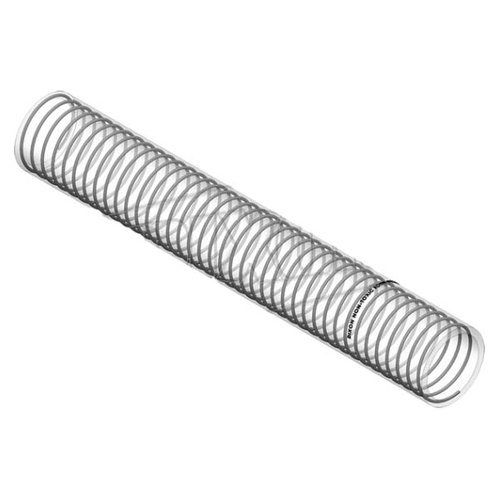

Dixon Metalflex PVC Suction Hose - Food Grade Clear

Attributes

• Material: PVC
• Bend Radius: 82 mm
• Vacuum Rating: 8 M/h20
• Color: Clear
• Intended Service: Water, Food & Chemical
• Working Pressure: 43 PSI (0.3 MPa)
• Temperature Range: -15°C to 60°C
• Burst Pressure: 130 PSI
• Length: 20m
• OD: 60.0mm
• ID: 50mm

Applications

• Ideal for use in vacuum pumps, agricultural machines, water irrigation, chemical plants and suction of foods.

Construction

• Tube: Clear PVC non-toxic
• Reinforcing: Wire helix

Features

• Non-toxic
• Non-conductive
• Very flexible, excellent kink abrasion and crush resistance.

Note

• Minimum cut length of 5 mtrs, charges apply for cutting hose.
• Complete hose data specification sheets are available upon request.
