Description

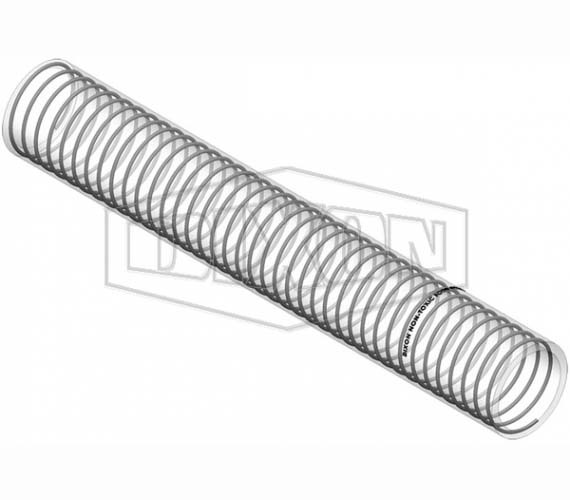

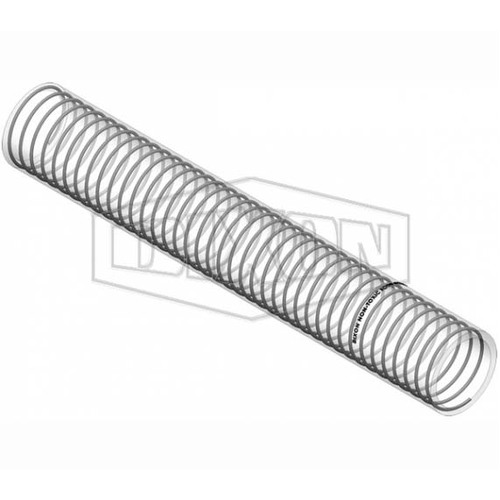

Dixon Metaflex PVC Suction Hose Clear Food Grade

Applications

  • Ideal for use in vacuum pumps, agricultural machines, water irrigation, chemical plants and suction of foods.

Features

  • Non-toxic
  • Non-conductive
  • Very flexible, excellent kink abrasion and crush resistance.

Construction

  • Tube: Clear PVC non-toxic
  • Reinforcing: Wire helix

Safety Notes

  • Working pressure and bend radius figures for152mm Hose ID is calculated as theoretical.

Available Lengths

  • Cut Length: 5 m
  • Coil Length: 20 m

Specifications

  • AIMS SKU A0068748CUT
  • Brand Dixon
  • Model Number ARM045
  • Hose Length 5 m
  • Application Water, Food & Chemical
  • Hose ID 45 mm
  • Burst Pressure 130 psi
  • Color Clear
  • Working Pressure (psi) 43
  • Temperature Range -15°C to 60°C
  • Working Pressure (mpa) 0.3
  • Weight kg/m 1.1
  • Bend Radius (mm) 105
  • Hose Outside Diameter (mm) 54.8
  • Vacuum Rating (m.H2O) 8
  • Type Sunction Hose - Food Grade
  • Material PVC
SKU: A0068748CUT

Dixon 45mm x 5m Metaflex PVC Suction Hose Clear Food Grade ARM045

Dixon Metaflex PVC Suction Hose Clear Food Grade

$157.15
