Curved Tooth Gear Coupling Half Pilot Bore 55mm Max Bore - Finer Power Transmissions

Description

***Catalogue dimensions are reference only. Contact AIMS to confirm actual measurement if a specific dimension is critical to your application.***

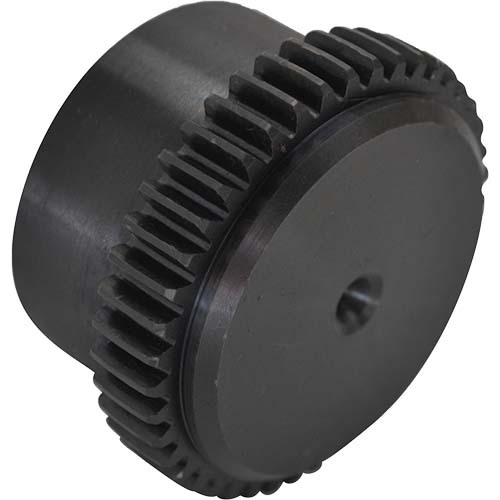

Curved Tooth Gear Coupling Half Pilot Bore

Curved tooth gear hub half.

About Curved Tooth Gear Coupling

The Curved Tooth Gear Coupling consists of 2 geared hubs and a curved tooth nylon sleeve.

About Product Characteristic

Double-Section type curved-tooth gear couping.
Widely applicable in various mechanical & hydraulic fields.
Nylon & steel matched, maintenance free.
Able to offset axial, radial & angular misalignments.
Axial plugging assembly, very convenient Nylon Toothed Sleeve.

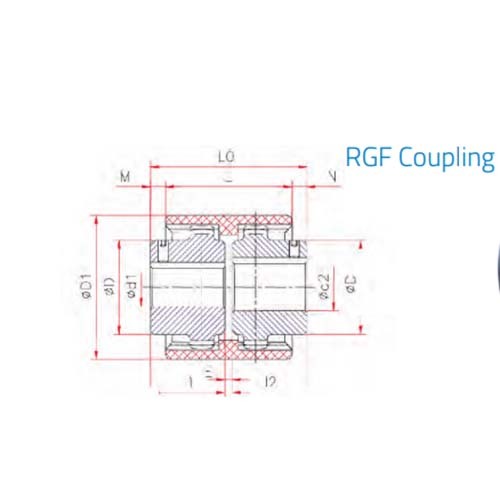

Specifications

AIMS SKU A0151032

d1 114

D 82

E 4

L 58

Max Bore (mm) 55

L1 / L2 52

LO 108

M, N 25

Torque Rating (nm) 240

Weight (Kg) Hub Half 2.5

Type Gear Coupling
