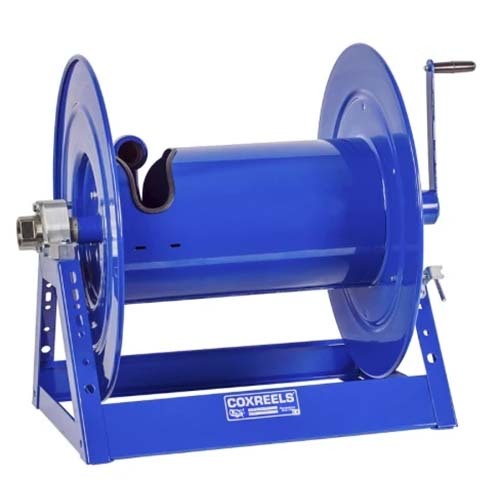

Coxreel 1185 Series Bare Hand Crank Hose Reel

Description

• COXREELS® 1185 Series hand crank hose reels are designed to handle long lengths of large diameter hose for increased volume delivery.
• Coxreels’ exclusive low profile outlet riser and open drum design provide a non-crimping, flat smooth hose wrap.
• The sturdy all welded "A" frame base provides exceptional strength to handle the extra weight without sacrificing performance, even in demanding mobile applications.

Swivel

• External fluid path with in-line aluminum straight full flow NPT swivel inlet.
• Swivel Seals: NITRILE

Design & Structure

• All welded steel frame construction to strengthen the reel structure
• Exclusive low profile outlet riser & open drum slot design for flat smooth hose wrap.
• Robust lubricated horizontal surface mount bearings for easy rotation.
• Adjustable tension brake to prevent free-wheeling during operation

Retract

• Reliable chain & sprocket drive on motor driven models.
• Solid steel direct hand crank with smooth round handle.
