***Catalogue dimensions are reference only. Contact AIMS to confirm actual measurement if a specific dimension is critical to your application.***

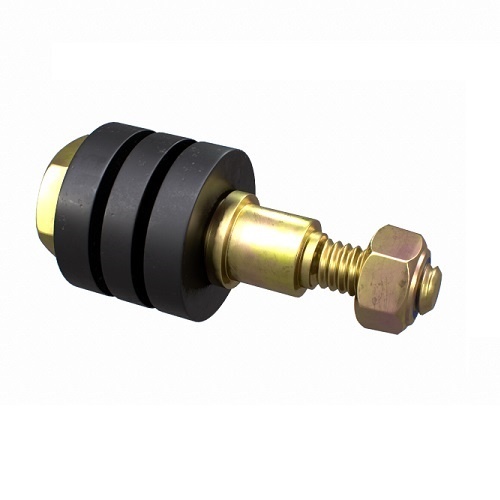

Cone Ring Pin Nut Rubber Assembly

About Cone Ring Couplings

• Cone Ring Couplings are based on a time-proven design.
• The coupling consists of two flanges interlocked with a number of elements, depending on the coupling size.
• The Cone Rings Couplings' unique flexible element comprises tapered rubber rings mounted on steel pins.
• The rubber rings absorb commonly encountered misalignment, shock and vibration.
• The Cone Ring Coupling is as popular as ever for its ease of maintenance.
• No Lubrication is required.
• The Pin and Rubber design ensure trouble-free maintenance, as they can be removed and changed without the need to take the coupling off the shafts.
• The flanges are high-grade cast iron
• The pins are hexagonal steel bar
• The rings are synthetic rubber.
