Description

***This pump is NOT currently stocked in our warehouse but can usually be sourced within 24 hours. Contact us if you need this pump urgently.***

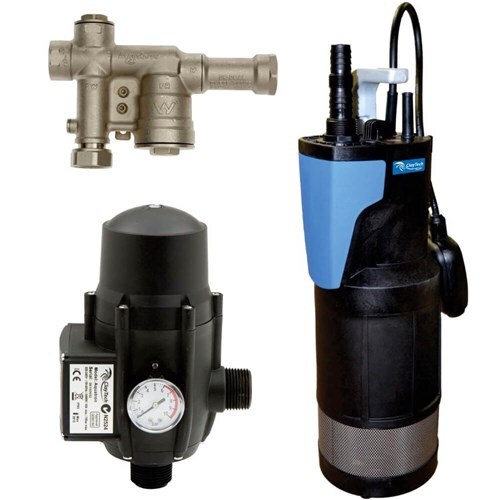

ClayTech Bluediver Submersible Pump and AcquaSaver

  • This pump have been designed to ClayTech specifications with high head and relatively low flow, allowing the pumping system to operate at the ‘best efficiency point’ of the pump.

Features

  • A multi-purpose water transfer pump with a float to control the starting and stopping of the pump by the water level, for tank emptying

AcquaSaver Water Diversion Valve

  • Hydraulically Operated. Solid Brass Construction. Built-in Dual Check Valves.
  • Prioritise the use of rainwater over mains water and will automatically switch over to mains water in the event of the rainwater tank running low.
  • The AcquaSaver Valve is a fully automatic mechanical rainwater/mains water changeover device designed for pressure pump supply systems for harvesting rainwater for the toilet, laundry and household applications with automatic mains backup.
  • Watermark approved
    Does not require regular maintenance
    No electrical consumption - No electronic components
    Solid brass construction - Fully weatherproof - Built to last
    Suitable for any pressure pump with sufficient head pressure
    Can be mounted in any position
    Built-in dual check valve for backflow prevention

How does the AcquaSaver Work

  • The AcquaSaver Valve will always prioritize the use of rainwater over mains water when rainwater is available and will automatically switch over to mains water in the event of the rainwater tank running low or electrical failure.
  • When rainwater has been replenished or power has been restored to the pump, the AcquaSaver valve will automatically prioritize back to rainwater.
  • The pump is only active when rainwater is being drawn from the water tank, it does not operate when the AcquaSaver Valve has switched to mains position.
  • The pump controller starts and stops the pump when it detects a demand - for example flushing a toilet or using a washing machine.
  • The operating mechanism of the AcquaSaver Valve is a unique patent design, it works by hydraulic water pressure created by the pump to close one inlet fully before opening the other inlet.
  • This ensures an extremely reliable mechanism using few moving parts and no electronic components and no energy consumption.

Specifications

  • AIMS SKU A0170875
  • Brand ClayTech Pumps
  • Model Number CLA CMS C30A1
  • Pump Outlet Size 1 1/4"
  • Power Absorbed P2 650 W

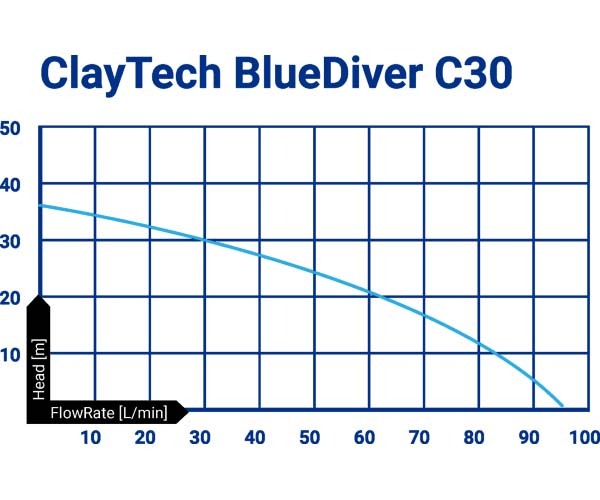

  • Max Head 36m
  • Pump Max Flow Rate 95 L/min
  • Aquasaver Size 1"
  • Type Drainage Pump
SKU: A0170875

ClayTech CMS C30A1 - BlueDiver C30A Submersible Pump and 1" AcquaSaver

ClayTech Bluediver Submersible Pump and AcquaSaver

$1,617.00
RRP $1,732.50
SAVE $115.50 (7%)
