Circlip Internal

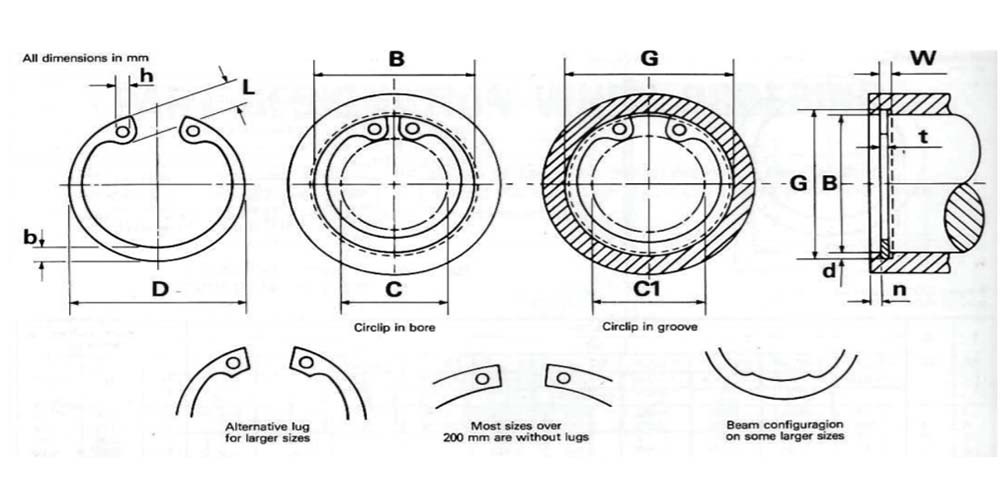

  • Specifications (All dimensions in mm. Refer to the diagram for reference.)

Specifications

  • AIMS SKU A0100382
  • Circlip In Groove (C1) mm 109
  • Unstressed Diameter (D) mm 135
  • Radial Depth Of Groove (d ~) 2
  • Groove Width (W) mm 4.15
  • Bore Diameter (D) mm 127
  • Beam Dimension (b) mm 10
  • Circlip In Bore ( C ) mm 103.9
  • Tolerance (t) (+)0.00, (-)0.10
  • Shoulder Length (n) mm 6
  • Tolerance (G) (+)0.63, (-)0.00
  • Lug Max (Lmax) mm 11
  • Tolerance (D) (+)1.50, (-)0.63
  • Thickness (t) mm 4
  • Tolerance (W) (+)0.18, (-)0.00
  • Groove Diameter (G) mm 131
  • Lug Hole (h min) mm 4
  • Type Internal Circlips
  • Item Type (Internal/External)
SKU: A0100382 On Sale

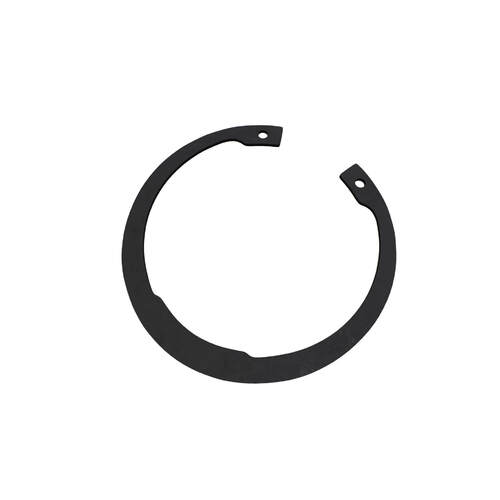

Circlip Internal 127mm

Circlip Internal

$5.77
$8.24
Sale Ends in

Choose a different size/variant
