Specifications

AIMS SKU A0100540

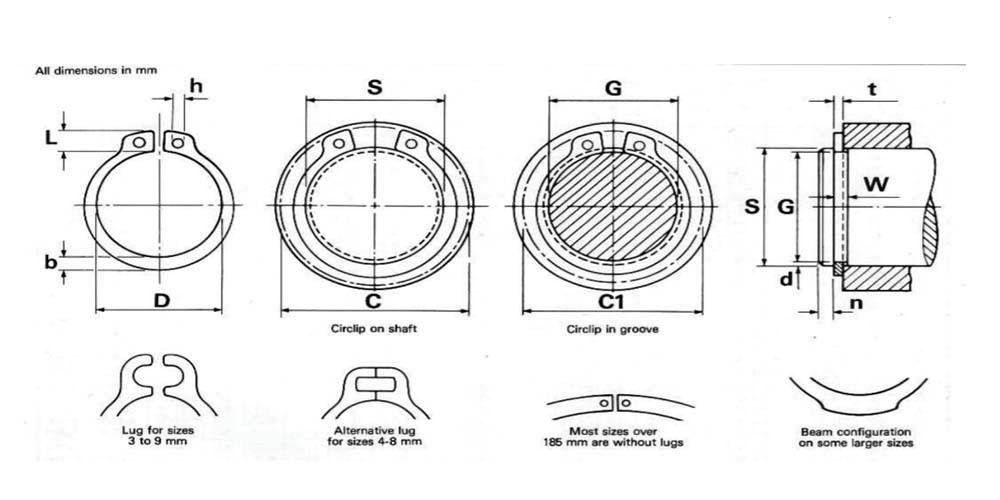

Groove Diameter (G) mm 5.7
Tolerance (G) (+)0.00, (-)0.048
Groove Width (W) mm 0.8
Shoulder Length (n) mm 0.5
Radial Depth Of Groove (d ~) 0.1
Thickness (t) mm 0.7
Unstressed Diameter (D) mm 5.6
Circlip In Bore ( C ) mm 11.7
Circlip In Groove (C1) mm 11.1
Lug Max (Lmax) mm 2.7
Beam Dimension (b) mm 1.3
Lug Hole (h min) mm 1.2
Shaft Diameter (S) mm 6

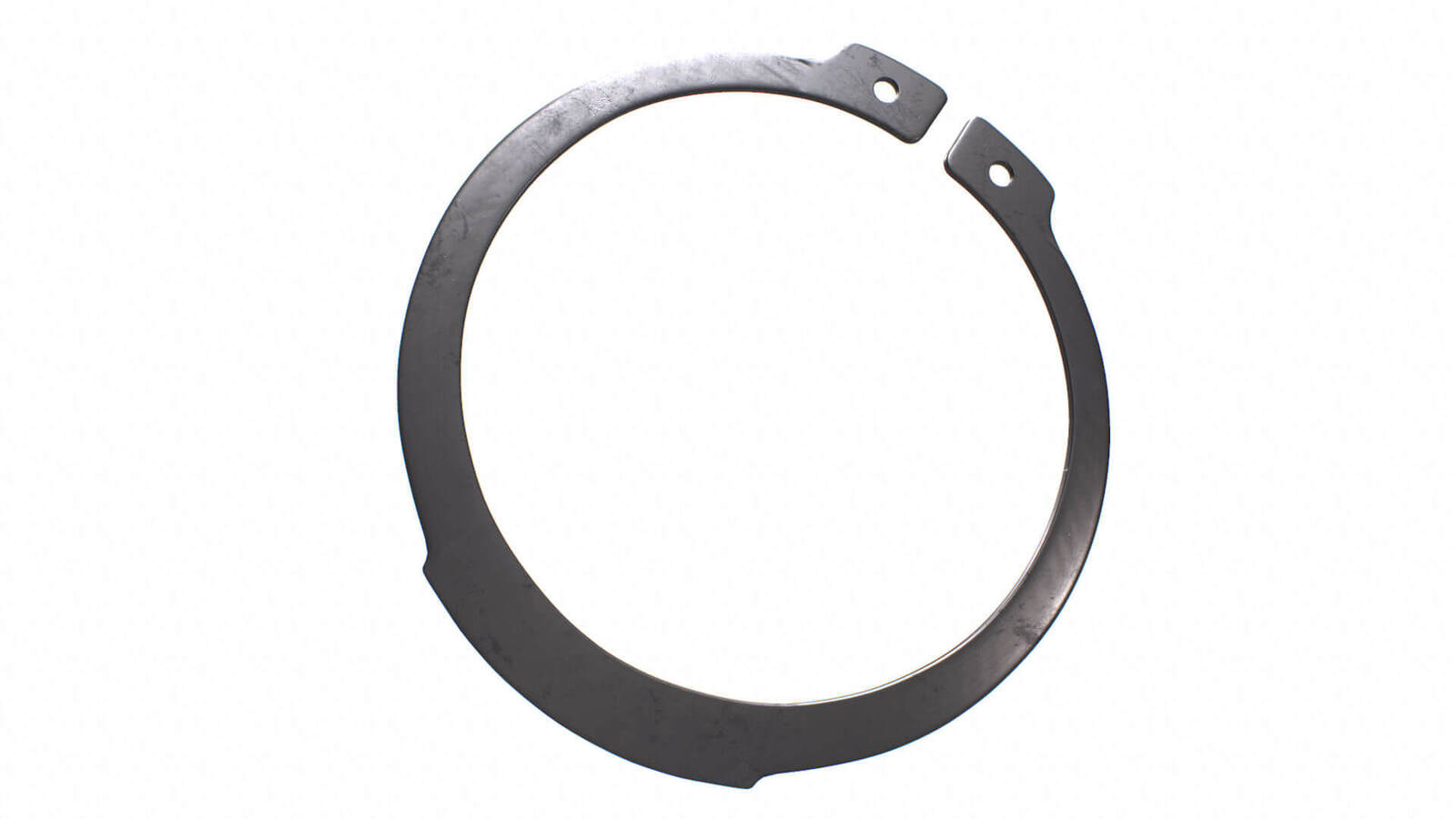

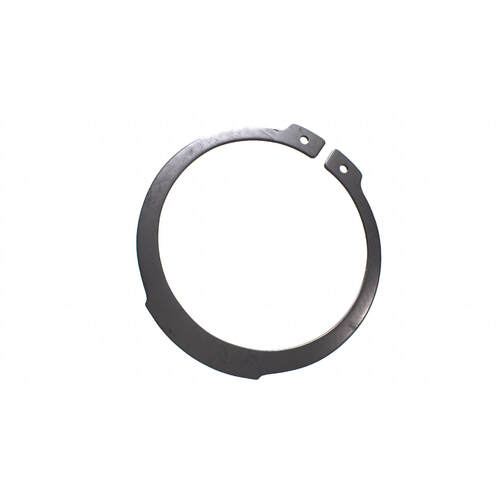

• Type External Circlips
• Material Stainless Steel
• Grade 420
• Item Type (Internal/External)
