Specifications

AIMS SKU A0100571
Groove Diameter (G) mm 37.5
Tolerance (G) (+)0.00 (-)0.25
Groove Width (W) mm 1.85
Tolerance (W) (+)0.14 (-)0.00
Shoulder Length (n) mm 3.8
Radial Depth Of Groove (d ~) 1.25
Thickness (t) mm 1.75
Tolerance (t) (+)0.00 (-)0.06
Unstressed Diameter (D) mm 36.5
Tolerance (D) (+)0.39 (-)0.90
Circlip In Bore ( C ) mm 52.6
Circlip In Groove (C1) mm 49.5
Lug Max (Lmax) mm 6
Beam Dimension (b) mm 4.4
Lug Hole (h min) mm 2.5
Shaft Diameter (S) mm 40

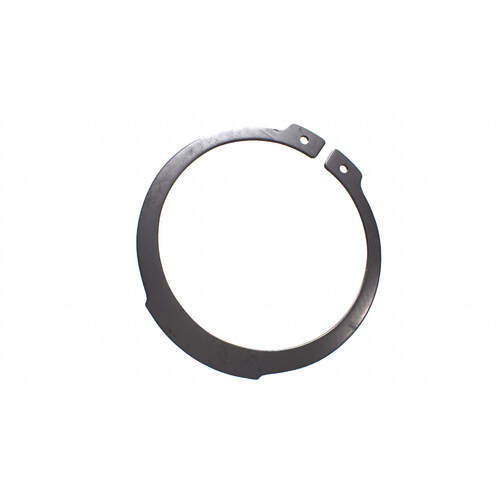

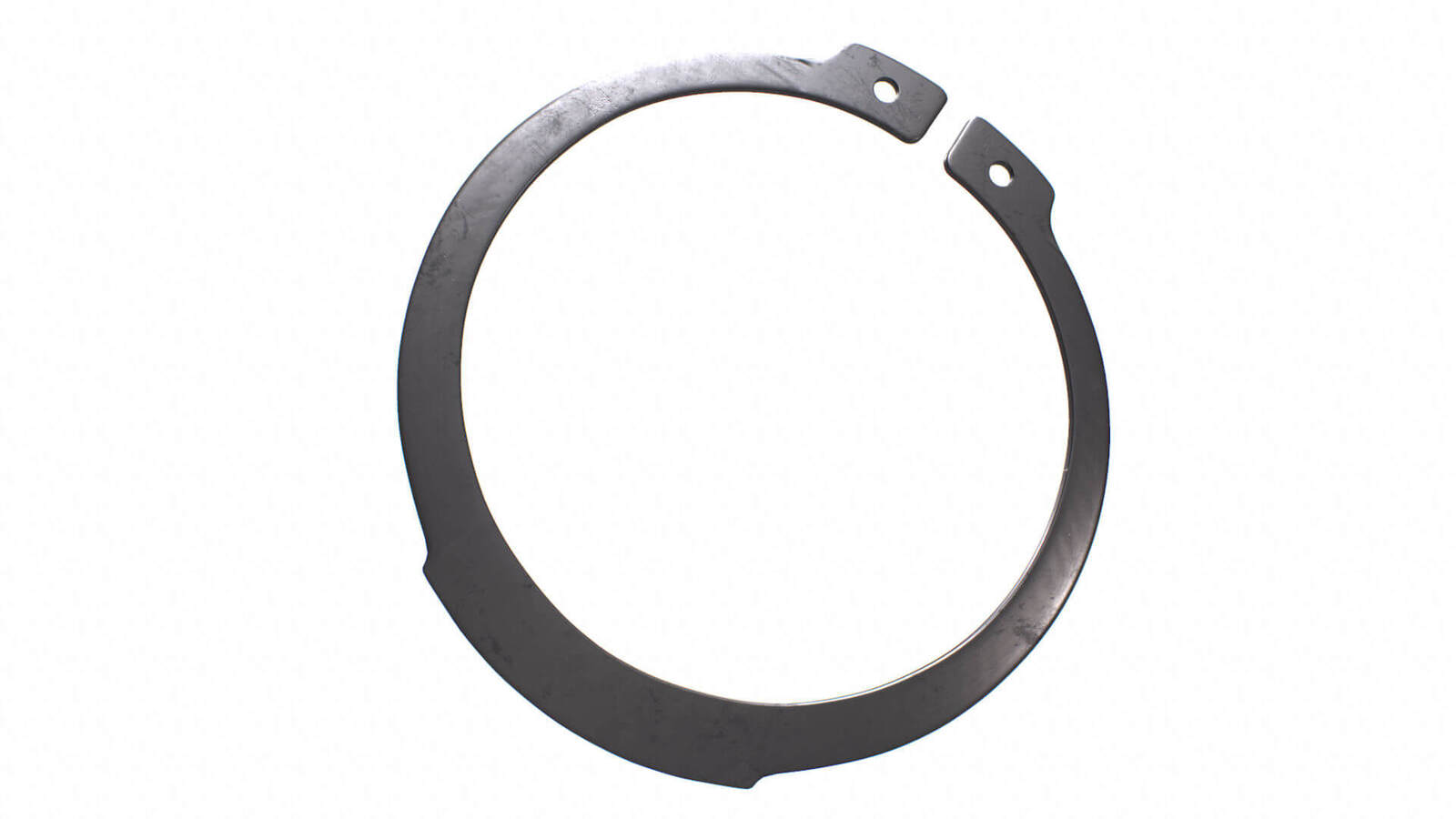

• Type External Circlips
• Material Stainless Steel
• Grade 420
• Item Type (Internal/External)
