Circlip External

  • Specifications (All dimensions in mm. Refer to the diagram for reference.)

Specifications

  • AIMS SKU A0100566
  • Lug Max (Lmax) mm 5.2
  • Tolerance (D) (+)0.25 (-)0.5
  • Thickness (t) mm 1.5
  • Tolerance (W) (+)0.14 (-)0.00
  • Groove Diameter (G) mm 31.3
  • Lug Hole (h min) mm 2.5
  • Circlip In Groove (C1) mm 41.7
  • Unstressed Diameter (D) mm 30.5
  • Radial Depth Of Groove (d ~) 0.85
  • Groove Width (W) mm 1.6
  • Beam Dimension (b) mm 3.7
  • Circlip In Bore ( C ) mm 44
  • Tolerance (t) (+)0.00 (-)0.06
  • Shoulder Length (n) mm 2.6
  • Tolerance (G) (+)0.00 (-)0.25
  • Shaft Diameter (S) mm 33
  • Type External Circlips
  • Material Stainless Steel
  • Item Type (Internal/External)
  • Grade 420
SKU: A0100566 On Sale

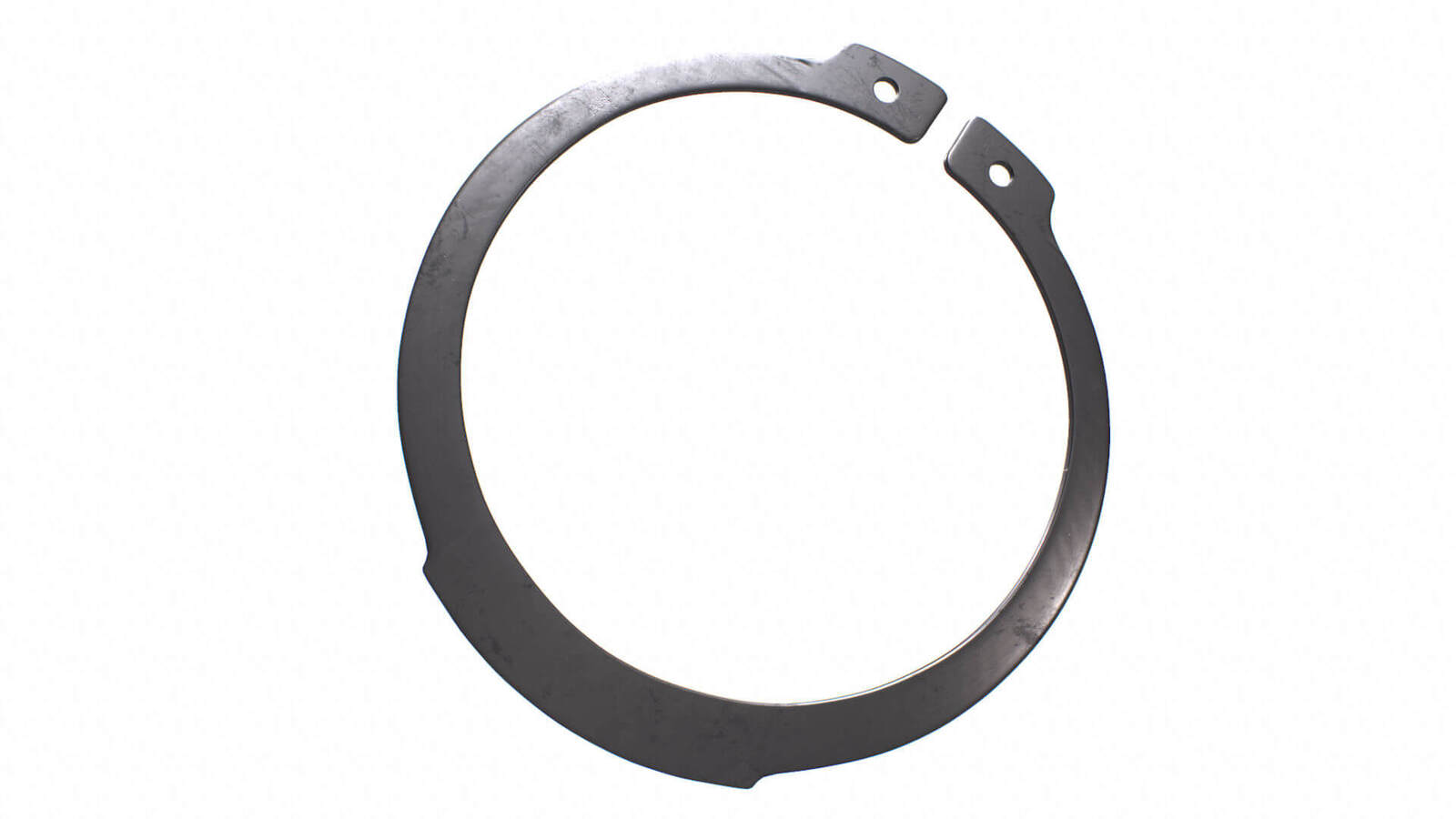

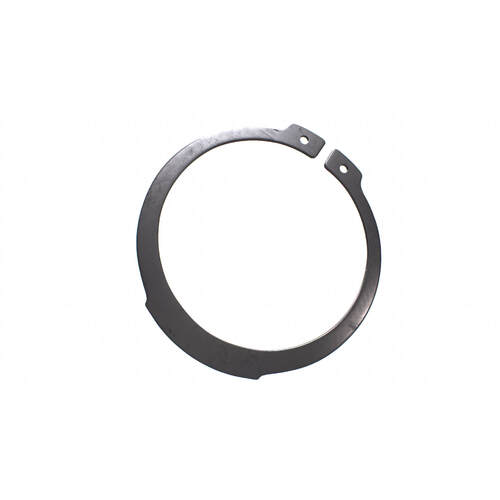

Circlip External Stainless Steel 33mm - Pack of 5

Circlip External

$7.04
$10.05
