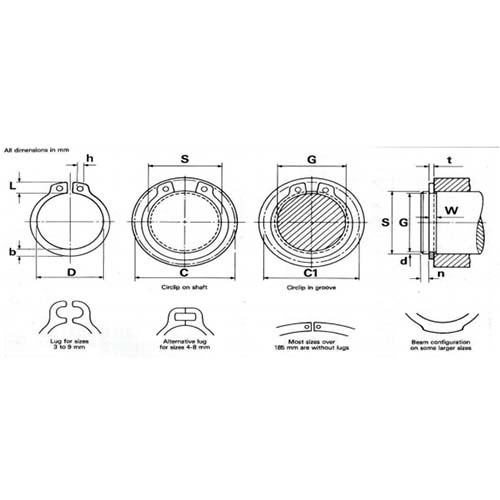

Specifications
- AIMS SKU A0149999
- Groove Diameter (G) mm 42.5
- Tolerance (G) (+)0.00 (-)0.25
- Groove Width (W) mm 2.5
- Tolerance (W) (+)0.14 (-)0.00
- Shoulder Length (n) mm 3.8
- Radial Depth Of Groove (d ~) 1.25
- Thickness (t) mm 1.75
- Tolerance (t) (+)0.00 (-)0.06
- Unstressed Diameter (D) mm 41.5
- Tolerance (D) (+)0.39 (-)0.90
- Circlip In Bore ( C ) mm 59.1
- Circlip In Groove (C1) mm 55.9
- Lug Max (Lmax) mm 6.7
- Beam Dimension (b) mm 4.7
- Lug Hole (h min) mm 2.5
- Shaft Diameter (S) mm 45
- Type External
SKU: A0149999
On Sale
Circlip External - Heavy Duty 45 x 2.5mm
Circlip External - Heavy Duty
$2.89
