Description

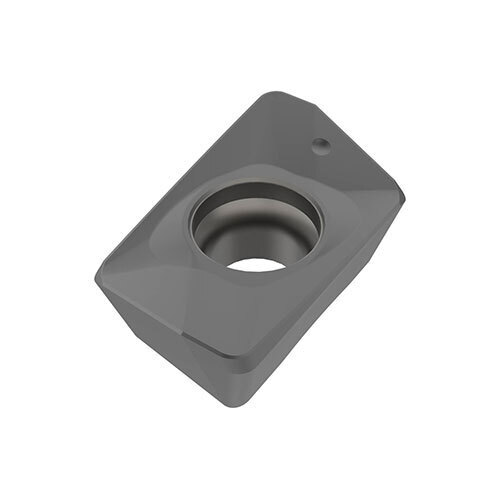

Carbide CVD (M12) Turbo 12 Square Shoulder Milling Insert

  • MK1500 grade, carbide CVD.
  • CVD (Chemical Vapour Deposition).
  • CVD-coated grades are suitable for wear resistance in demanding applications with high feed rates and intermediate to high cutting speed.

MK1500 Grade

  • CVD-coated grade based on Duratomic™ coating. Basic grade for milling cast iron and nodular cast iron, with or without coolant.
  • Ti (C, N) – Al2O3.

About Turbo Square Shoulder Milling

  • Aggressively optimize your cutting properties with Seco’s Turbo family of cutters that reduce heat generation and cutting forces.
  • These cutters are available in a variety of configurations, all with copy milled pockets for insert stability and two pitch configurations to tackle almost every material.
  • Maximize output in a wide range of applications including; roughing, semi-finishing, finishing.
  • Methods include all facing, slotting, profiling contouring, helical interpolation, ramping, and plunging applications.

Specifications

  • AIMS SKU A0118886
  • Brand Seco
  • Model Number 02566325
  • Barcode Number 66325025001006

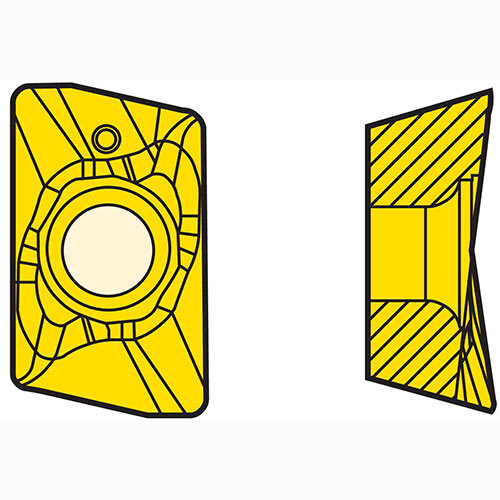

  • Designation XOMX120408TR-M12 MK1500

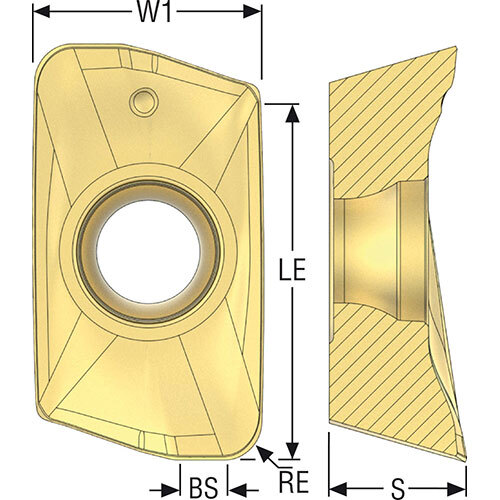

  • Wiper Edge Length (bs) Mm 1.6
  • Cutting Rake Deg 10.4 deg
  • Insert Hand (IH) Right
  • Grade MK1500
  • Insert Width (w1) Mm 8.2
  • Insert Seat Size Code (SSC) XOMX12..
  • Insert Thickness (S) mm 5.07
  • Cutting Edge Count (CEDC) 2
  • Clearance Angle Major) Deg 15.0 deg
  • Corner Radius (RE) mm 0.8
  • Cutting Edge Effective Length (LE) mm 11.6
  • Grade Type Carbide CVD
  • Type Chamfer Turbo 12 Milling Insert
SKU: A0118886

Seco 11.6 x 5.07mm MK1500 10.4° Chamfer Mill Turbo 12 Milling Insert XOMX120408TR-M12,MK1500 Pack of 10

Carbide CVD (M12) Chamfer Mill Turbo 12 Milling Insert

$281.24
