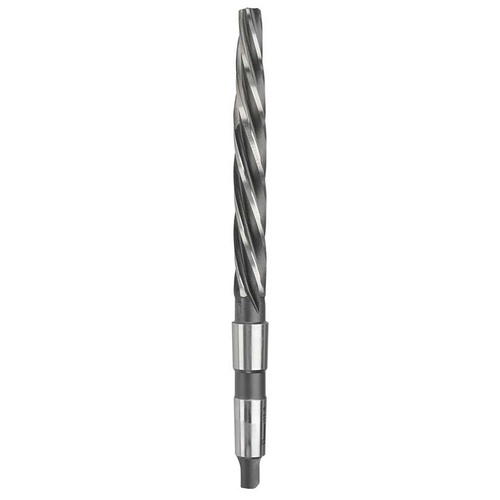

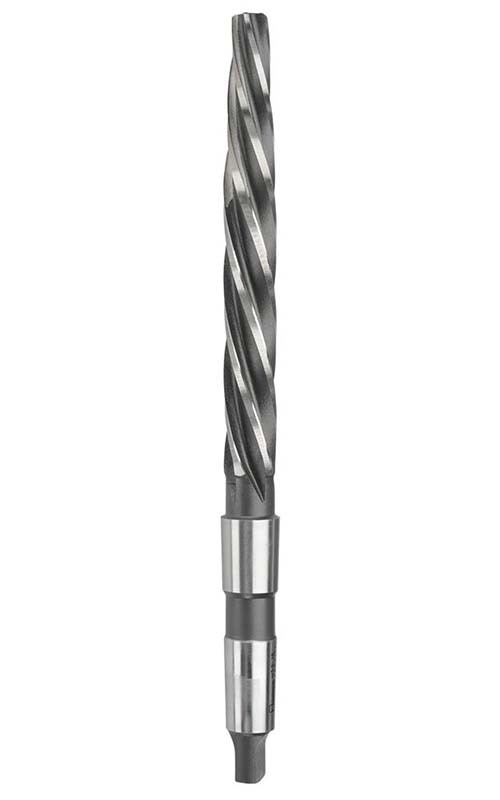

Bordo HSS Morse Taper Shank (MTS) Bridge Reamer

  • HSS Morse Taper Shank Tapered Spiral Flute Bridge Reamer
  • Bridge reamers are used to create an aligned hole in a structural steel assembly.
  • These reamers enlarge and align holes for rivets and bolts in structural steel members such as I-beams, angles, channels, and plates.
  • The reamer is tapered for approximately half its FL allowing the reamer to enter out-of-line holes often encountered in structural work.
  • All tools are constructed with left-hand spiral and right-hand cut.
  • The left-hand spiral eliminates the tendency of the reamer to pull itself into the hole.
  • In large structural assemblies, the holes are generally punched undersize and then reamed when in position.
  • The idea is that the holes most likely will not line up within about 1/8" when a fabricated 50 foot beam or column is finally put into place.
  • Coolant or cutting tool lubricant should be utilitised when possible.
  • Benefits include better finishes, superior tool life and the ability to increase speeds and feeds.
  • Bridge reamers should be run at half the R.P.M. suggested for a corresponding twist drill size.


  • AIMS SKU A0199071
  • Brand Bordo
  • Model Number 6335-13.00
  • Barcode Number 9326518160847

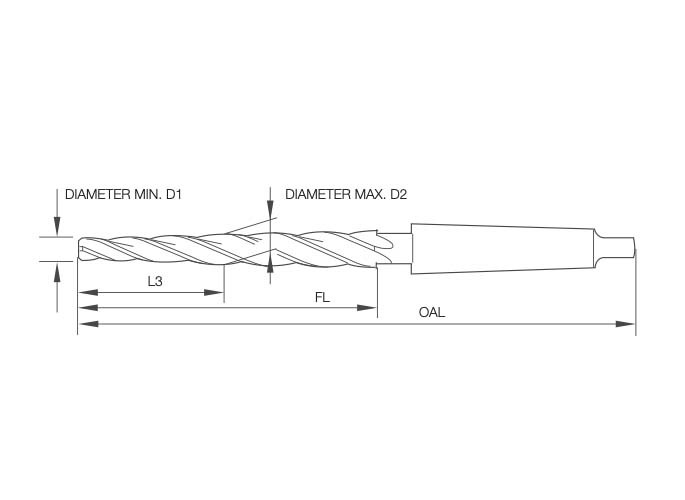

  • Size (mm) 13
  • Taper Length L3 (mm) 42
  • Flute Type Spiral
  • Max Dia. D2 (mm) 13
  • Flute (mm) 105
  • MTS No. 2
  • Min Dia. D1 (mm) 8.8
  • Overall Length (OAL) mm 199
  • Type Bridge Reamer
  • Material HSS
SKU: A0199071

Bordo 13mm Morse Taper Shank Spiral Flute Bridge Reamer - 6335-13.00

Bordo HSS Morse Taper Shank (MTS) Bridge Reamer

RRP $315.94
