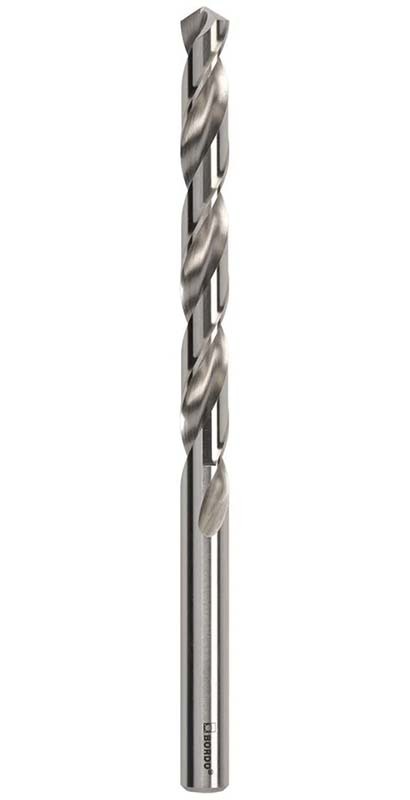

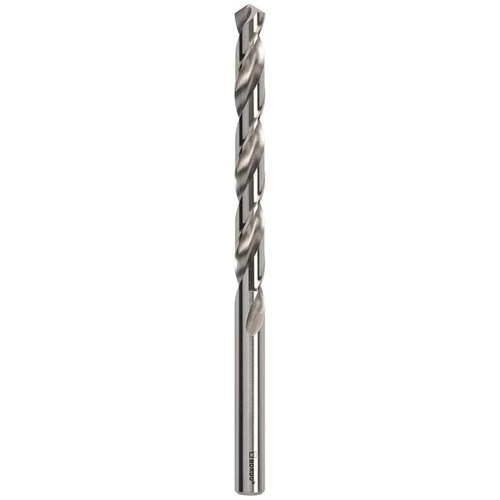

Bordo 5.5mm Long Series HSS Bright Drill Bit - 2506-5.50, Pack of 10

Description

Bordo Long Series HSS Bright Drill Bit (2506) - Metric

ANSI B94-11.
118° split point with 30° helix.
Split point is self centering and reduces the need for end thrust. Friction at workpiece is reduced.
118° point angles are ideal for use in materials such as mild steel and cast iron.
The 118° point creates easily controlled chips which are wide and thin.
Bright Finish Twist Drills have no surface treatment and are supplied in the as-ground condition.
These tools are suitable for general purpose use, particularly for non-ferrous applications.

Specifications

AIMS SKU A0199633

Brand Bordo

Model Number 2506-5.50

Barcode Number 9326518173120

Diameter (mm) 5.5

Flute Length (mm) 92

Overall Length (OAL) mm 152

Surface Finish Bright

Spindle Speed Stainless Steel RPM 695

Spindle Speed Tool Steel RPM 1042

Spindle Speed Cast Iron RPM 1390

Spindle Speed Malleable Iron RPM 1564

Spindle Speed Med. Carbon Steel RPM 1737

Spindle Speed Aluminium/Brass RPM 3532

Spindle Speed Wood/Plastic RPM 5270

Flute Type 30° Helix

Type of Point 118° Split Point

Feed per Revolution (mm) 0.12

Spindle Speed Free Cutting Stl RPM 2490

Type Long Drill Bit
Material HSS
