Description

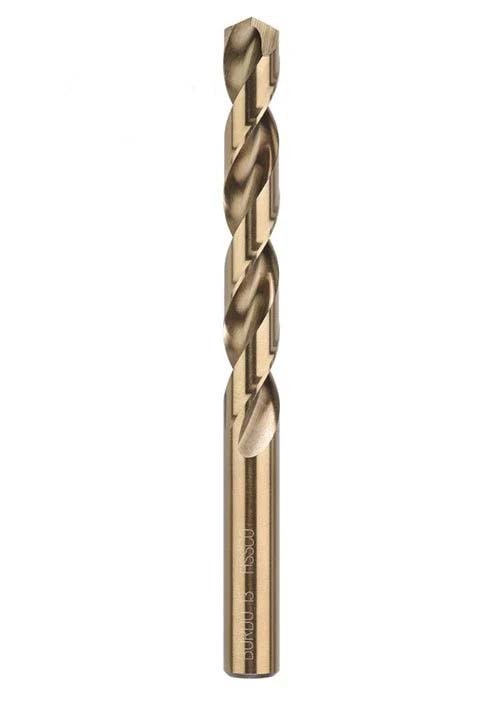

Bordo HSS Cobalt Jobber Drill Bit

  • HSS Cobalt Twist.
  • Bordo Fractional Cobalt Tough HSS-Co5 Twist Drills.
  • ANSI B94-11
  • 135º Split Point (crankshaft point).
  • Split point is self centering and the short distance from the drill axis to the outer corners results in faster penetration, reducing the need for end thrust.
  • The 135º point should be used to cut harder steel materials especially in deep hole applications.
  • In these situations it will produce thicker chips minimising work hardening of the cavity.
  • Faster penetration reduces abrasion and friction along the cutting edges.
  • Cobalt HSS Twist drills are extremely hard and provide superior performance and increased tool life especially in stainless steel and high tensile steel.
  • Bronze Finish (gold oxide) surface treatment. The metallic brown coloured low temperature temper treatment is normally only used on cobalt tools for identification purposes.

About 135° Split Point

  • 135° Split Point (crankshaft point).
  • Split point is self centering and the short distance from the drill axis to the outer corners results in faster penetration, reducing the need for end thrust.
  • The 135° point should be used to cut harder steel materials especially in deep hole applications.
  • In these situations it will produce thicker chips minimising work hardening of the cavity. Faster penetration reduces abrasion and friction along the cutting edges.

Specifications

  • AIMS SKU A0198638
  • Brand Bordo
  • Model Number 2010-27/64
  • Barcode Number 9326518036937
  • Point Type 135° Split Point
  • Diameter (inch) 27/64
  • Flute Length (mm) 100
  • Overall Length (OAL) mm 137
  • Diameter in (mm) 10.72
  • Spindle Speed Stainless Steel RPM 428
  • Spindle Speed Tool Steel RPM 642
  • Spindle Speed Cast Iron RPM 856
  • Spindle Speed Malleable Iron RPM 963
  • Spindle Speed Med. Carbon Steel RPM 1070
  • Spindle Speed Aluminium/Brass RPM 2175
  • Spindle Speed Wood/Plastic RPM 3244
  • Flute Type 30° Helix
  • Feed per Revolution (mm) 0.27
  • Spindle Speed Free Cutting Stl RPM 1533
  • Type Jobber Drill Bit
  • Material Cobalt HSS-Co5
  • Surface Finish Bronze
SKU: A0198638

Bordo 27/64" HSS Cobalt Jobber Drill Bit 2010-27/64 - Pack of 5

Bordo HSS Cobalt Jobber Drill Bit

$160.72
RRP $342.05
SAVE $181.33 (53%)
