Description

***Catalogue Dimensions are Reference Only. Contact AIMS to confirm actual measurement if a specific dimension is critical to your application.***

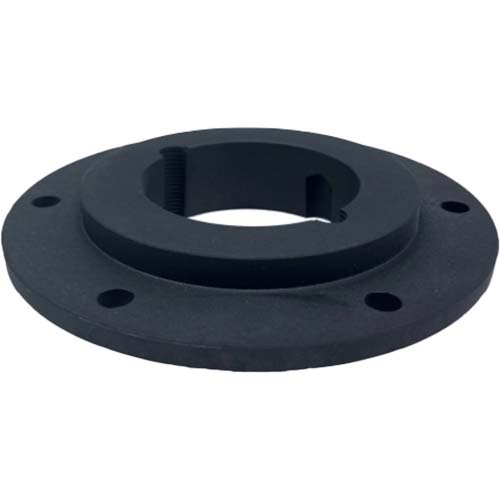

Bolt On Hub

  • Taper lock bolt-on hubs are designed for use with taper lock bushes.
  • They provide a convenient means of securing impellers, agitators, fan motors, and other devices firmly to shafts.
  • Bolt-on Hubs is used wherever welding is not possible or not permitted. Parts can be mounted to either the left or right-hand side of the hub.

Specifications

  • AIMS SKU A0152854
  • T/L Bush 1210

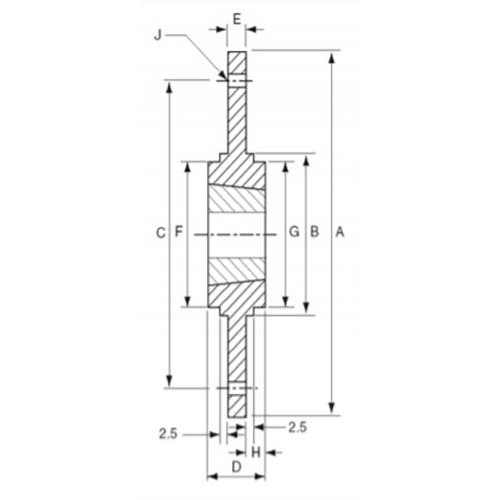

  • Dimension A 120
  • Dimension B 80
  • Dimension C 100
  • Dimension D 25
  • Dimension E 6.5
  • Dimension R 74
  • Dimension G 80
  • Dimension H 10
  • J (no. X Diameter) 6 x 6.5
  • Type Bolt on Hub
SKU: A0152854

Bolt On Hub 1210

Bolt On Hub - BF12

$80.63
